Teardown of TEMP-1

Follow these steps to take your sensor apart and put it back together.

1. Gently pry open the case lid as shown in the image below.

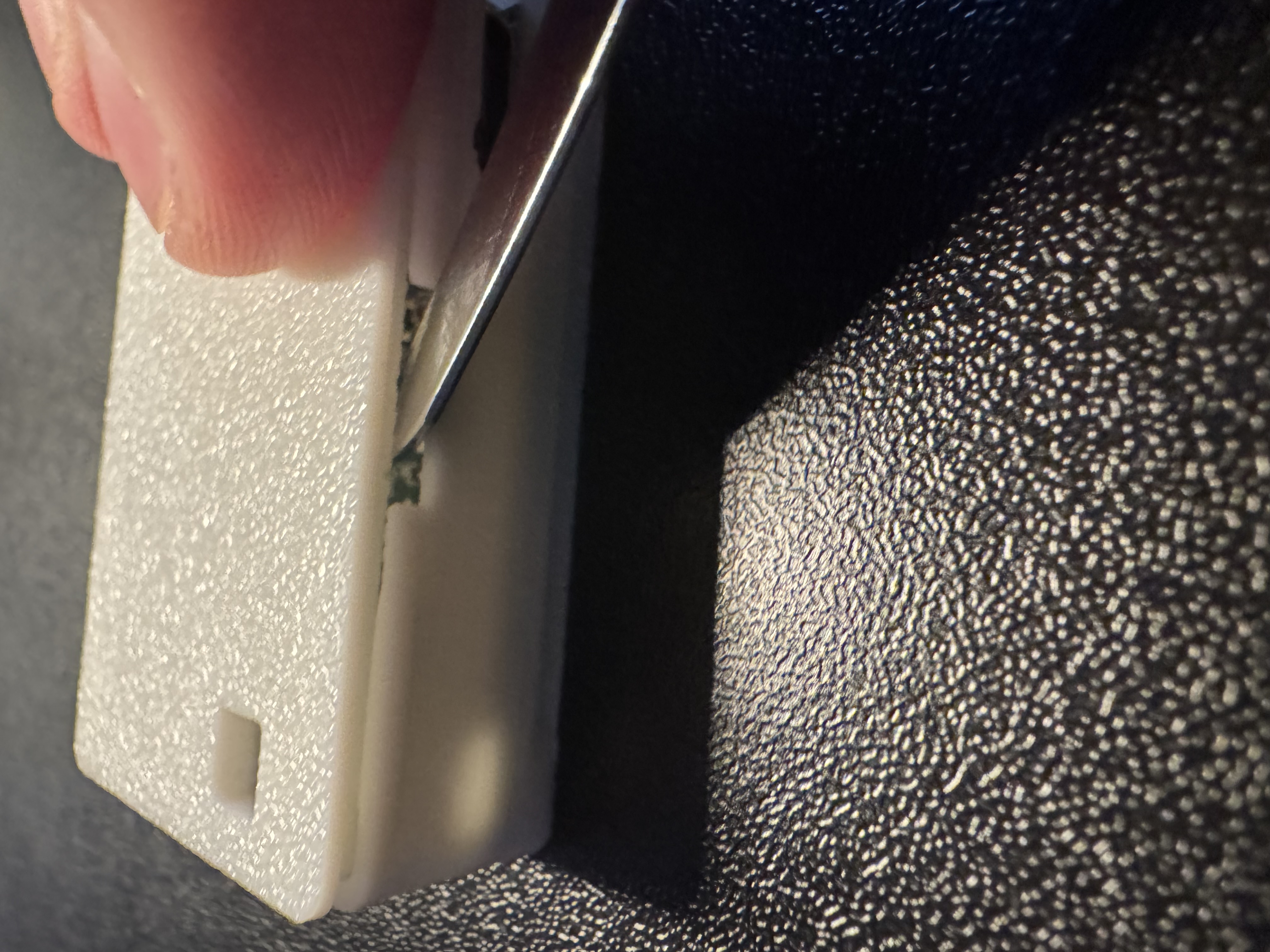

Metal tool prying the lid off the TEMP-1 case at the slit near the top

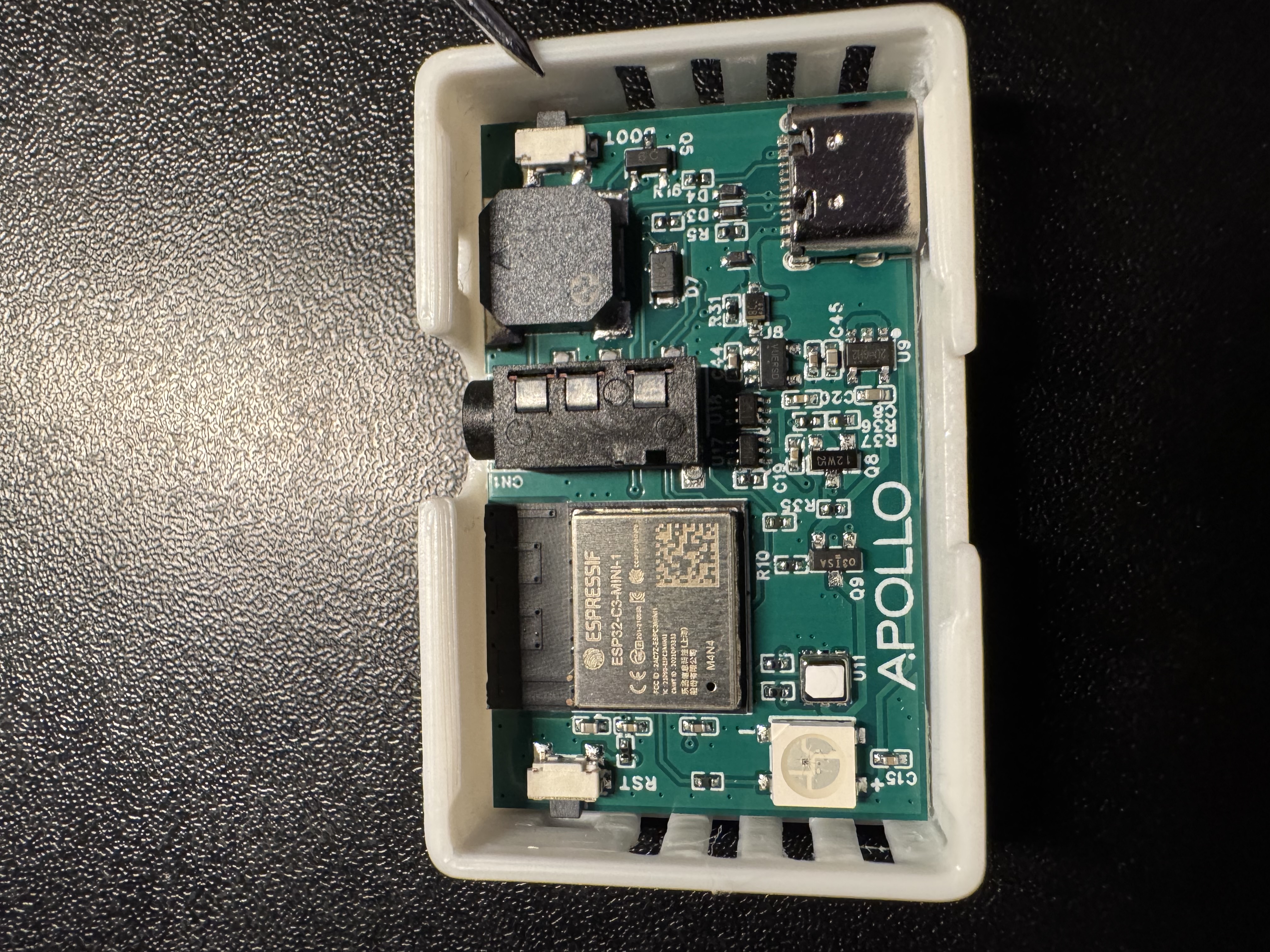

TEMP-1 case with the lid removed, showing the circuit board inside

2. Once the lid is removed either lift the PCB out or gently dump the pcb out by turning it upside down.

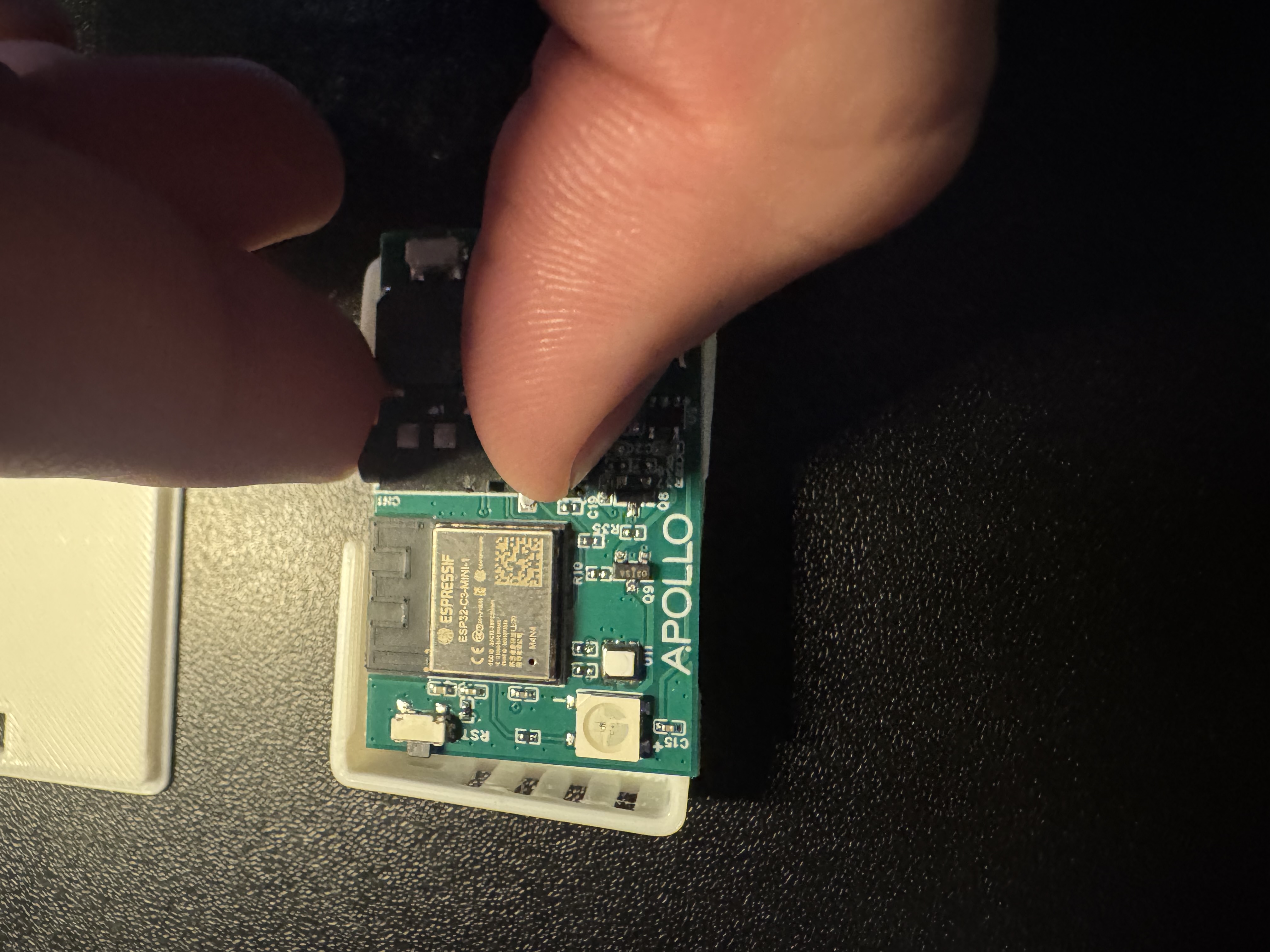

Fingers lifting the TEMP-1 circuit board out of the case

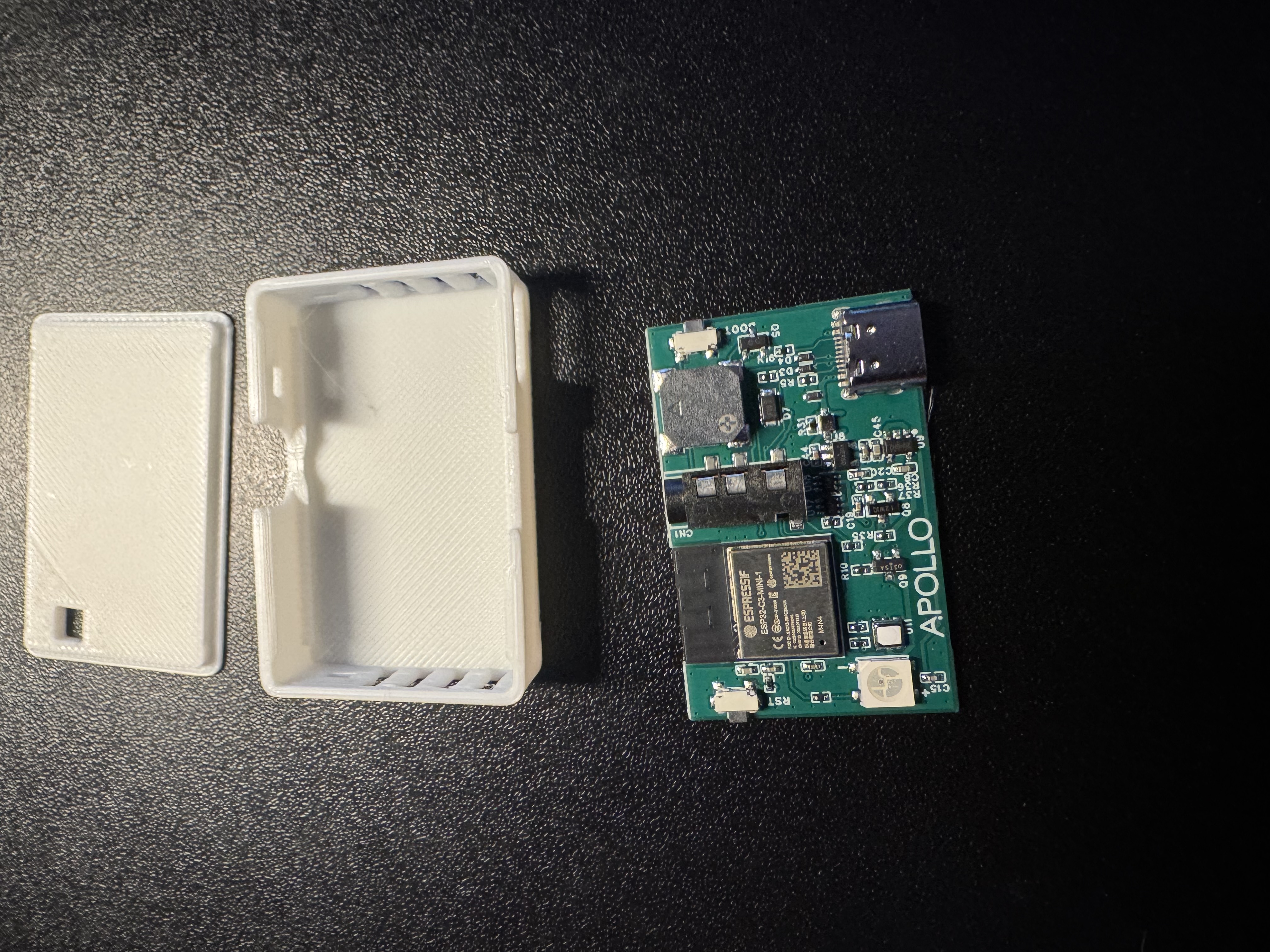

TEMP-1 fully taken apart into the lid, the empty case, and the circuit board

3. The teardown is complete!

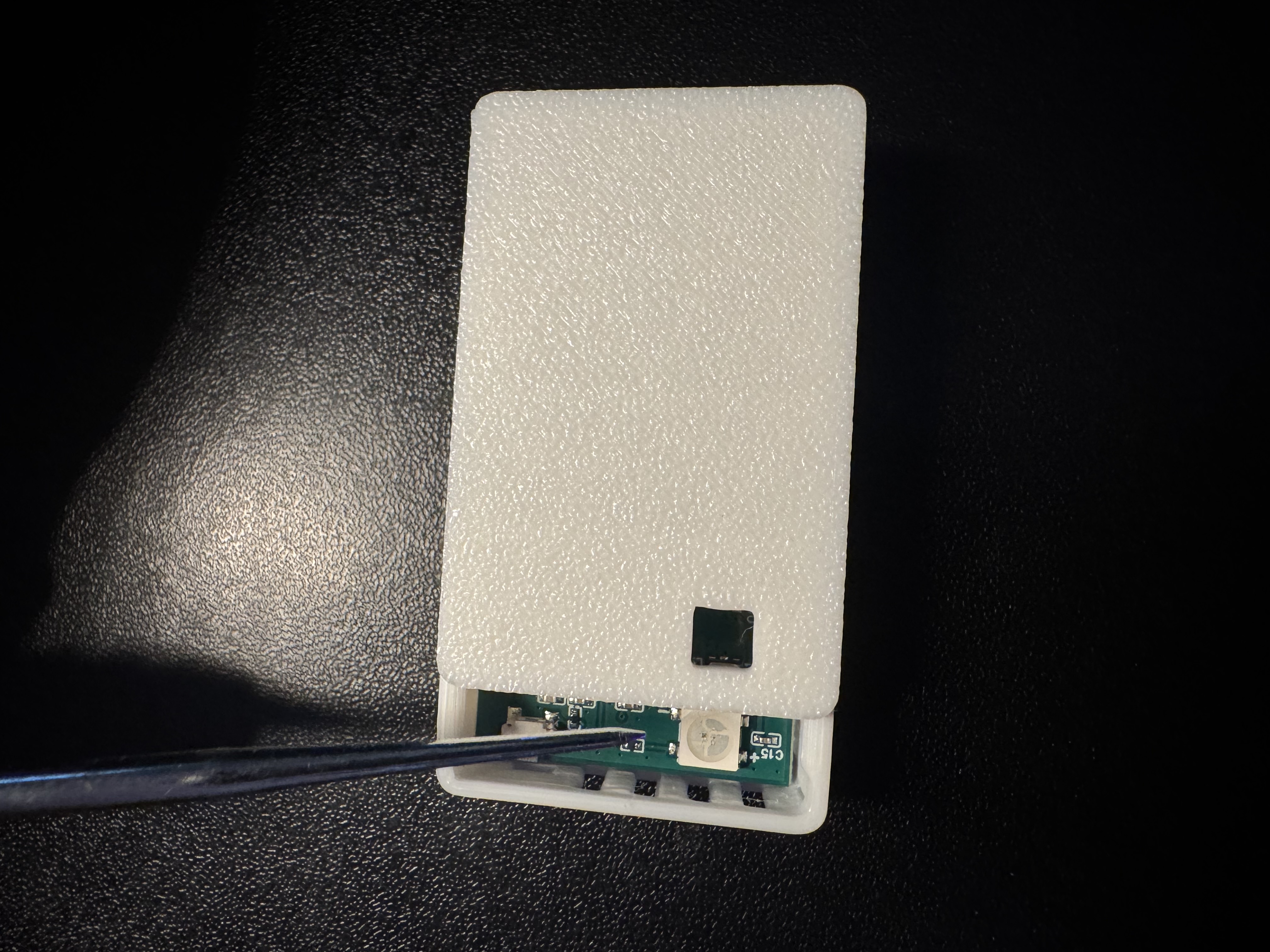

Tweezers pointing at the RGB LED in the bottom left as the TEMP-1 lid slides back on

4. Make sure during reassembly that the RGB LED is in the bottom left as shown in image below then press on the lid as shown below until it snaps into place!

Finger pressing the lid onto the TEMP-1 case until it snaps into place
