Teardown of TEMP-1B

Follow these steps to open the case and take out the PCB.

1. Gently pry open the case lid as shown in the image below.

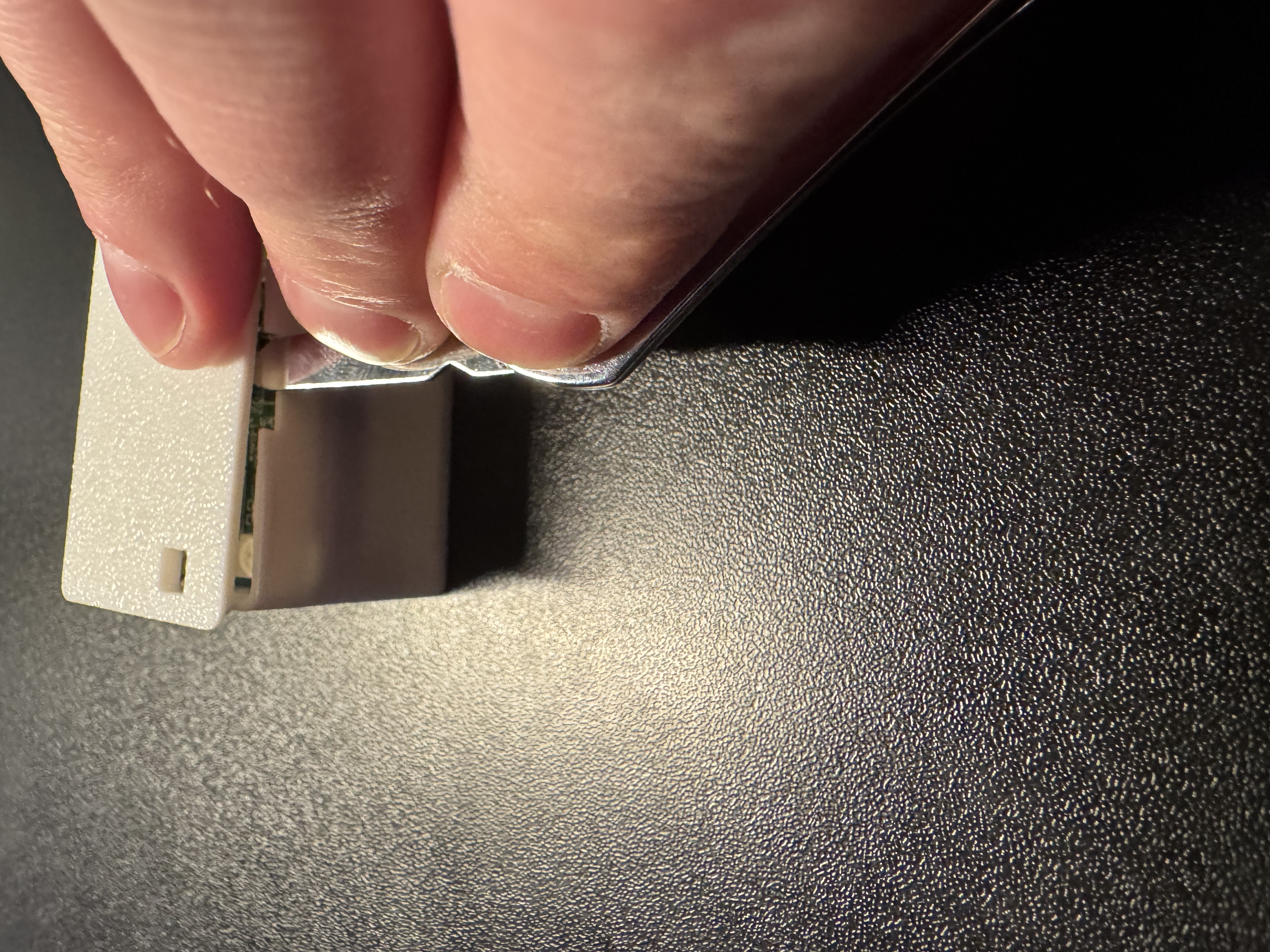

Prying up the TEMP-1B case lid with a thin metal tool held under the edge

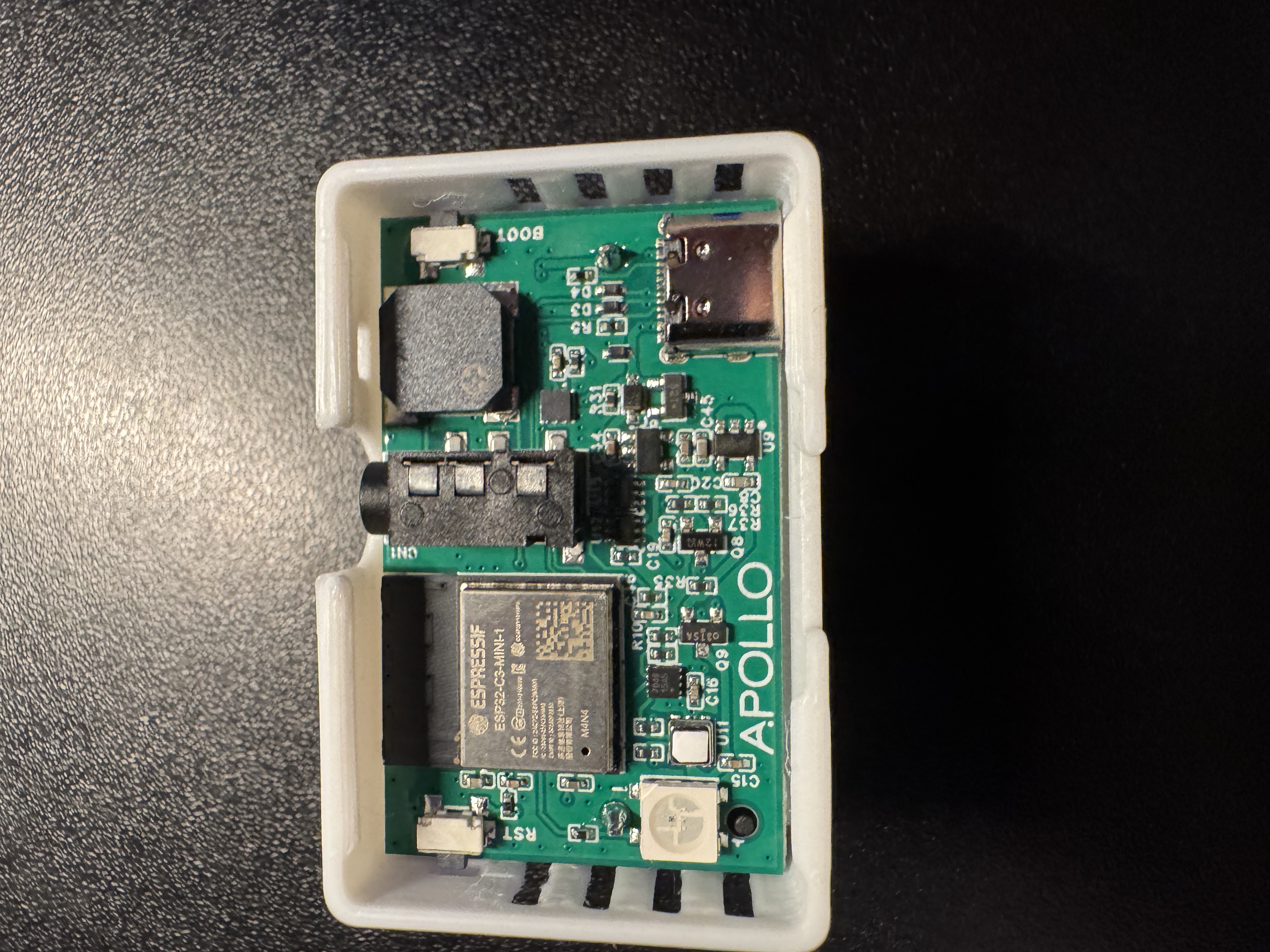

TEMP-1B case with the lid removed, showing the circuit board inside

2. Once the lid is removed either lift the PCB out or gently dump the PCB out by turning it upside down.

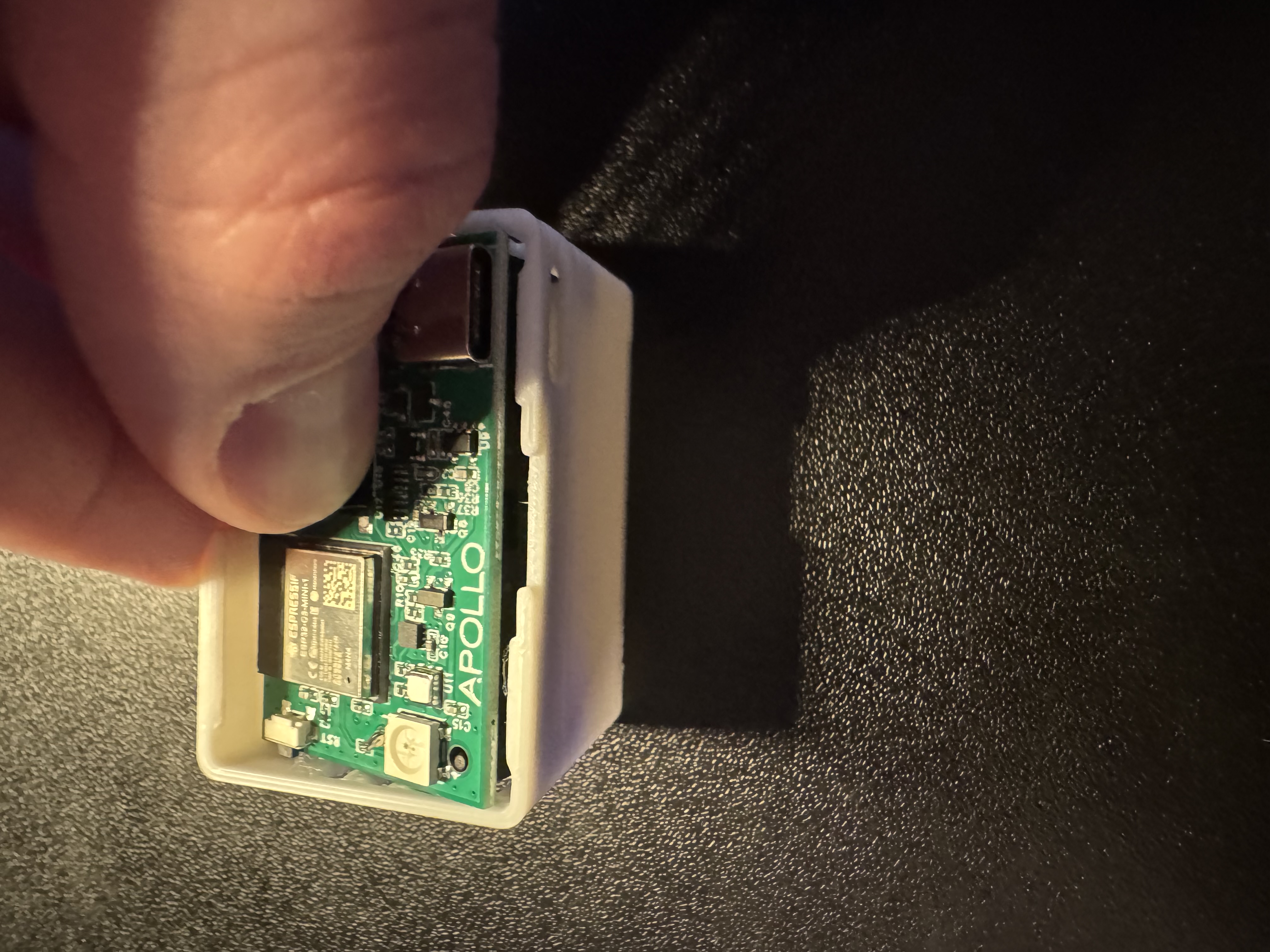

Lifting the TEMP-1B circuit board out of the open case

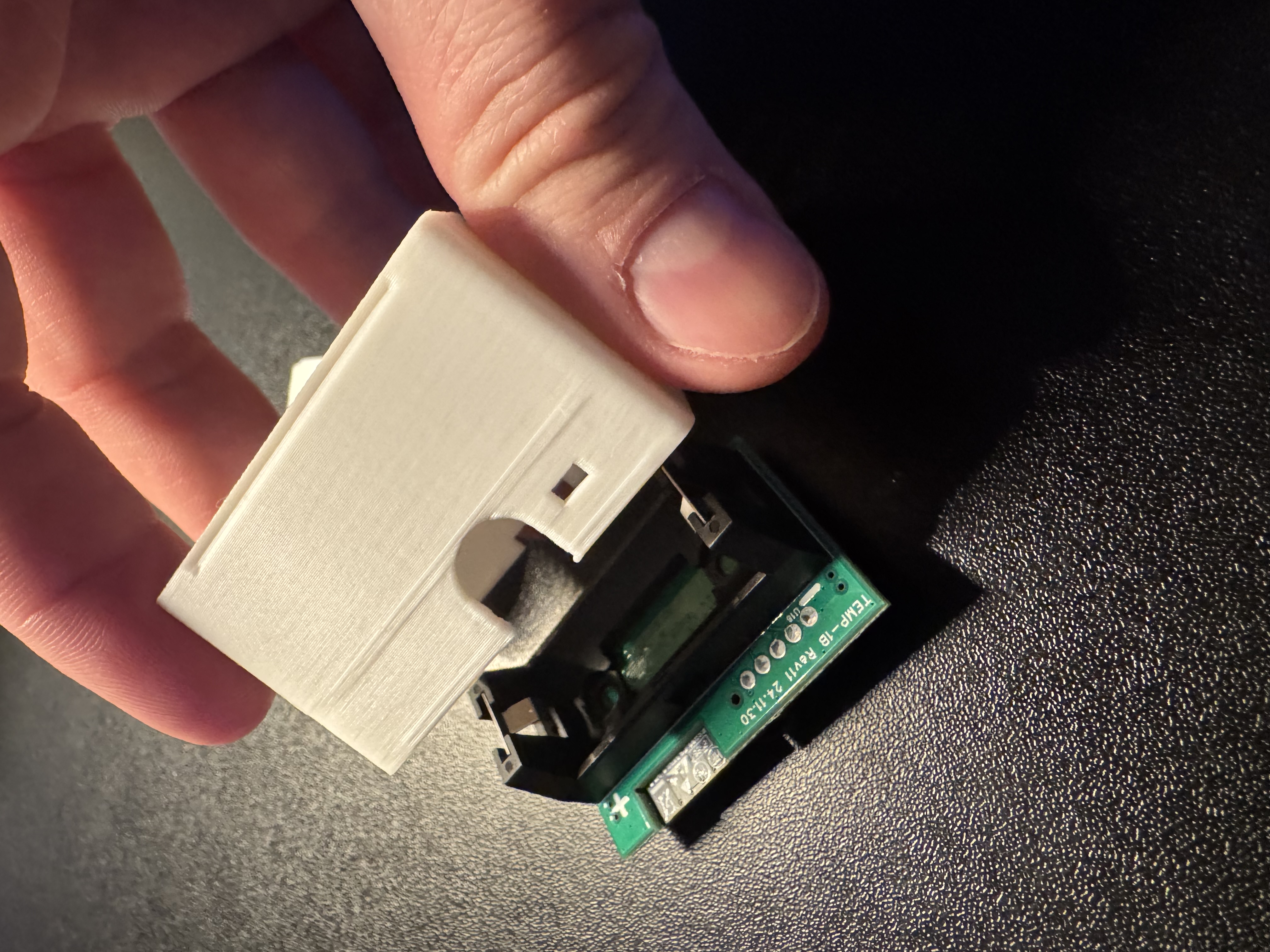

TEMP-1B case lifted off the board, showing the battery holder underneath

3. The teardown is complete!
