Factory re-flash R PRO-1

If your Apollo R PRO-1 becomes unresponsive and you've exhausted the other troubleshooting methods, you can re-flash the factory firmware by following the steps below. You'll put the R PRO-1 in boot mode, flash it from the Apollo installer in your browser, and then set it up as a new device.

Before you start

  • Do this factory re-flash in Chrome, Edge, or another Chromium-based browser.
  • If your device has already been connected to Home Assistant, remove it from the ESPHome integration and the ESPHome Device Builder before continuing.

1. Put your R PRO-1 in boot mode. The boot button is on the bottom right of the board, so first unplug the R PRO-1, remove the back, and take the board out of the case. The boot mode guide shows each part.

Tool pointing to the SW6 boot button at the bottom right of the R PRO-1 PCB

With the board out of the case:

  • Push and hold the boot button.
  • While still holding the button down, plug a USB-C cable into the USB-C port of your R PRO-1.
  • Let go of the button.

2. Open the Apollo R PRO-1 installer.

3. Under Choose your firmware, pick WiFi if your R PRO-1 connects over Wi-Fi, or Ethernet if it connects over PoE or Ethernet. Then click Connect & Install.

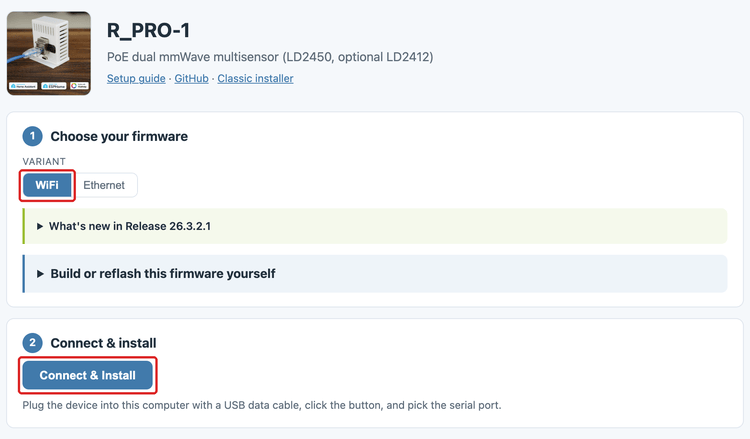

R PRO-1 page of the Apollo installer with the WiFi variant and the Connect & Install button outlined in red

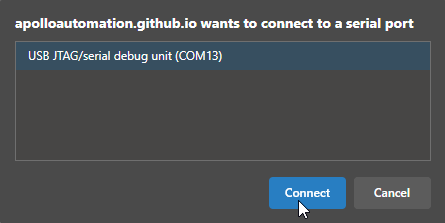

4. In the browser pop-up, select the open COM port (the R PRO-1's serial port, shown as USB JTAG/serial debug unit in the example below), then click Connect.

Browser serial port prompt with the USB JTAG serial debug unit COM port and Connect button

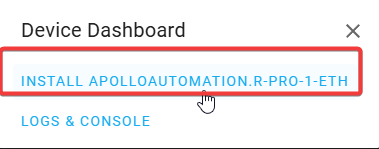

5. Click Install ApolloAutomation.R-PRO-1-W if you chose WiFi, or Install ApolloAutomation.R-PRO-1-ETH if you chose Ethernet.

Installer Device Dashboard with the install R PRO-1 Ethernet firmware option highlighted

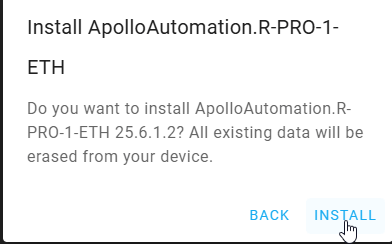

6. Click INSTALL.

Install confirmation dialog for the R PRO-1 Ethernet firmware with the INSTALL button

7. When you see Installation complete!, you're finished. Click Next, then close the browser window.

Installer showing Installation complete with the NEXT button highlighted

Your R PRO-1 now has the factory firmware again.

Power cycle your device before doing anything else

Your R PRO-1 is still in boot mode. Unplug it, then plug it back in so it starts in normal mode.

8. Follow the getting started guide to set up your R PRO-1 as a new device.
