Adding rear male USB-C to MTR-1

You'll seat the Rear Male USB-C addon on the mezzanine connector on the back of your sensor, then fit the new back that came with it.

1. Unplug your MTR-1 from power and remove the stand if attached.

Back of the MTR-1 with the stand still attached beside the USB-C port

2. Remove the backplate of the MTR-1.

MTR-1 with the backplate removed, exposing the green PCB and mezzanine connector

3. Identify the "X" on the PCB on the back of your MTR-1 and the "X" on the top left corner of the male Rear USB-C addon.

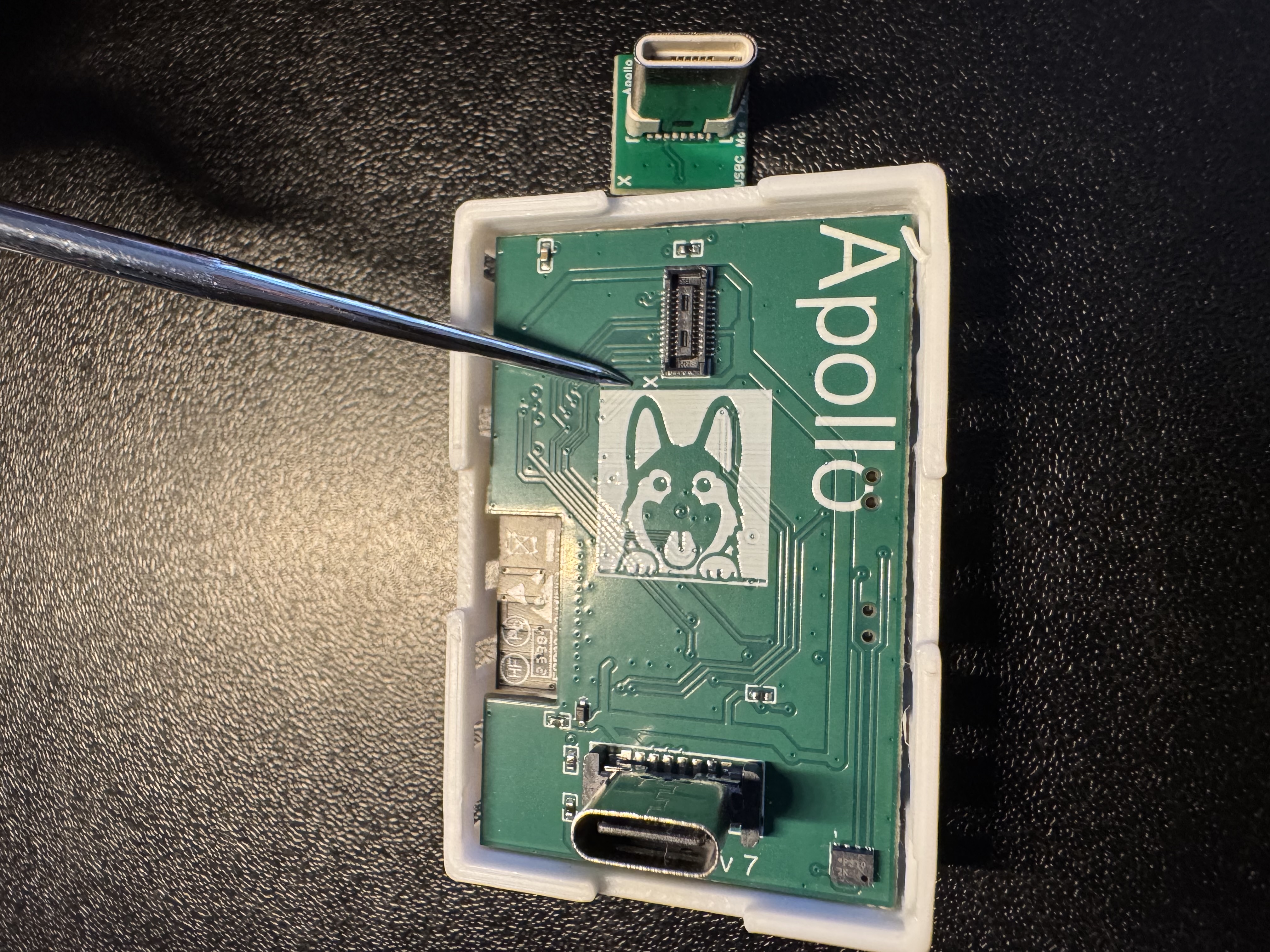

Tool pointing to the X marking beside the mezzanine connector on the MTR-1 PCB

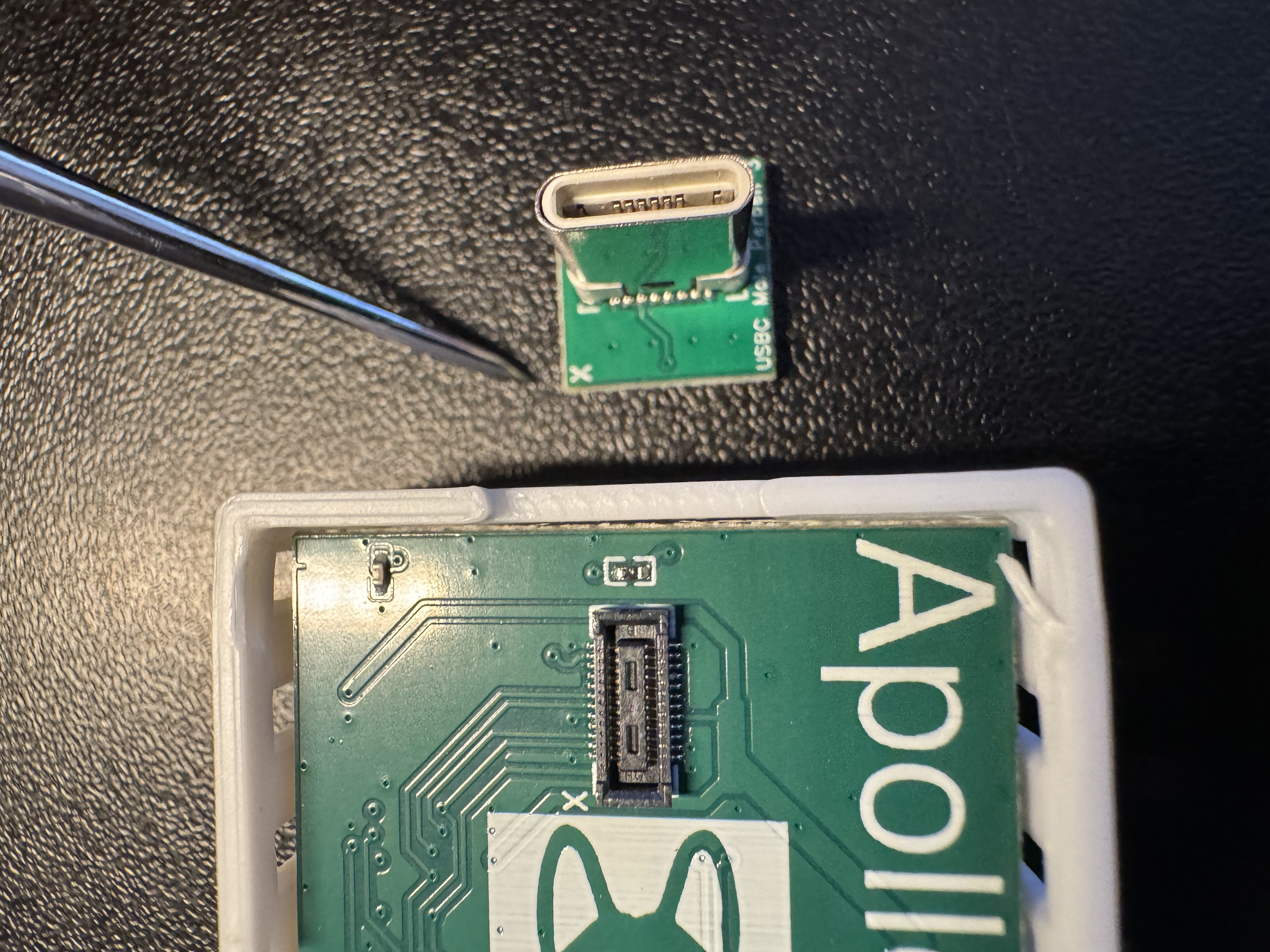

Tool pointing to the X marking in the top left corner of the Rear Male USB-C addon

4. Keep the "X" aligned on both sides and gently push down until it securely seats in the small mezzanine connector.

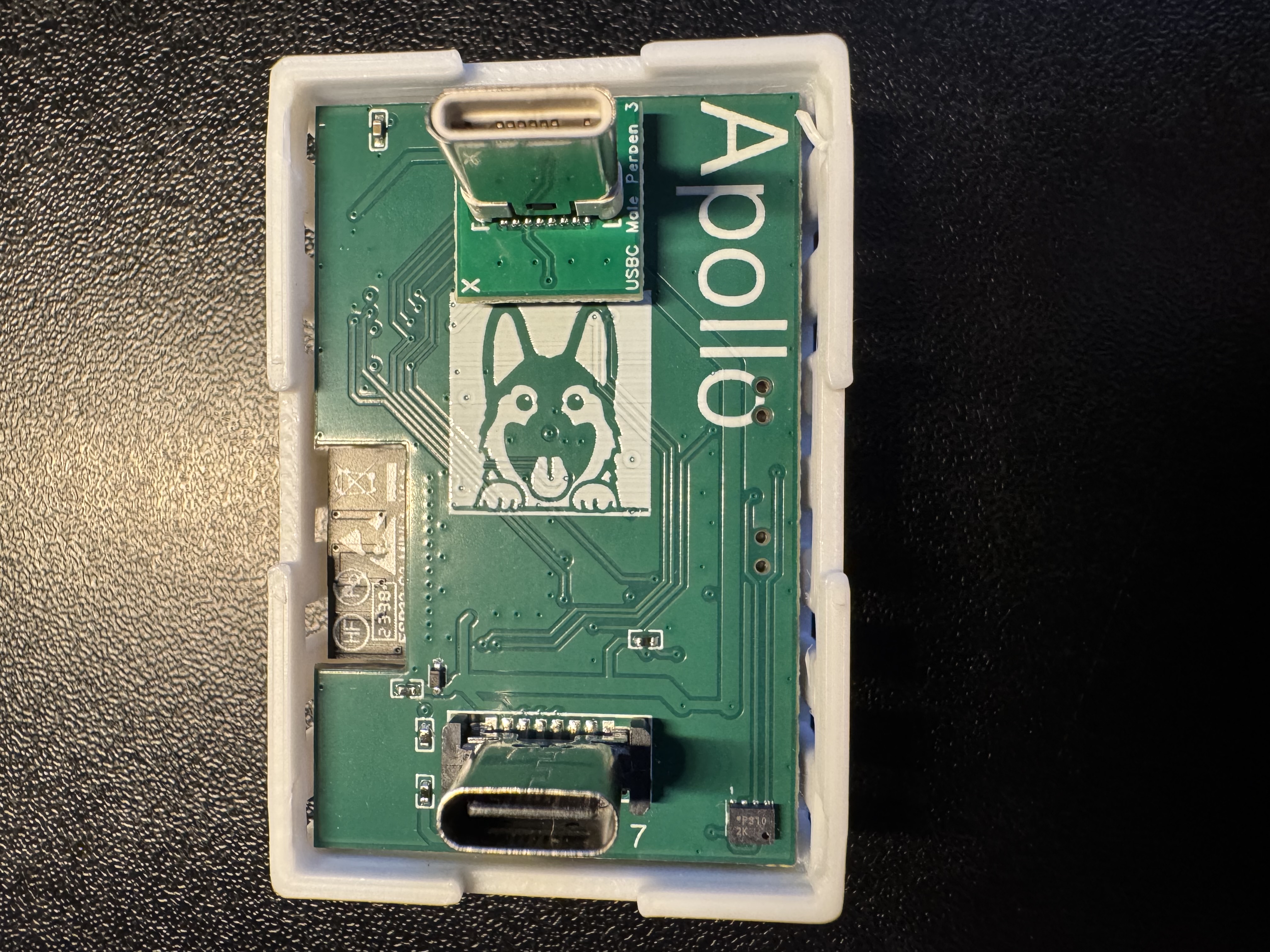

Rear Male USB-C addon seated on the mezzanine connector of the MTR-1 PCB

5. Align the new back for your MTR-1 that came with the Male USB-C addon. Push down on the corners closest to the USB-C addon first, and then push the back on securely on the other two corners.

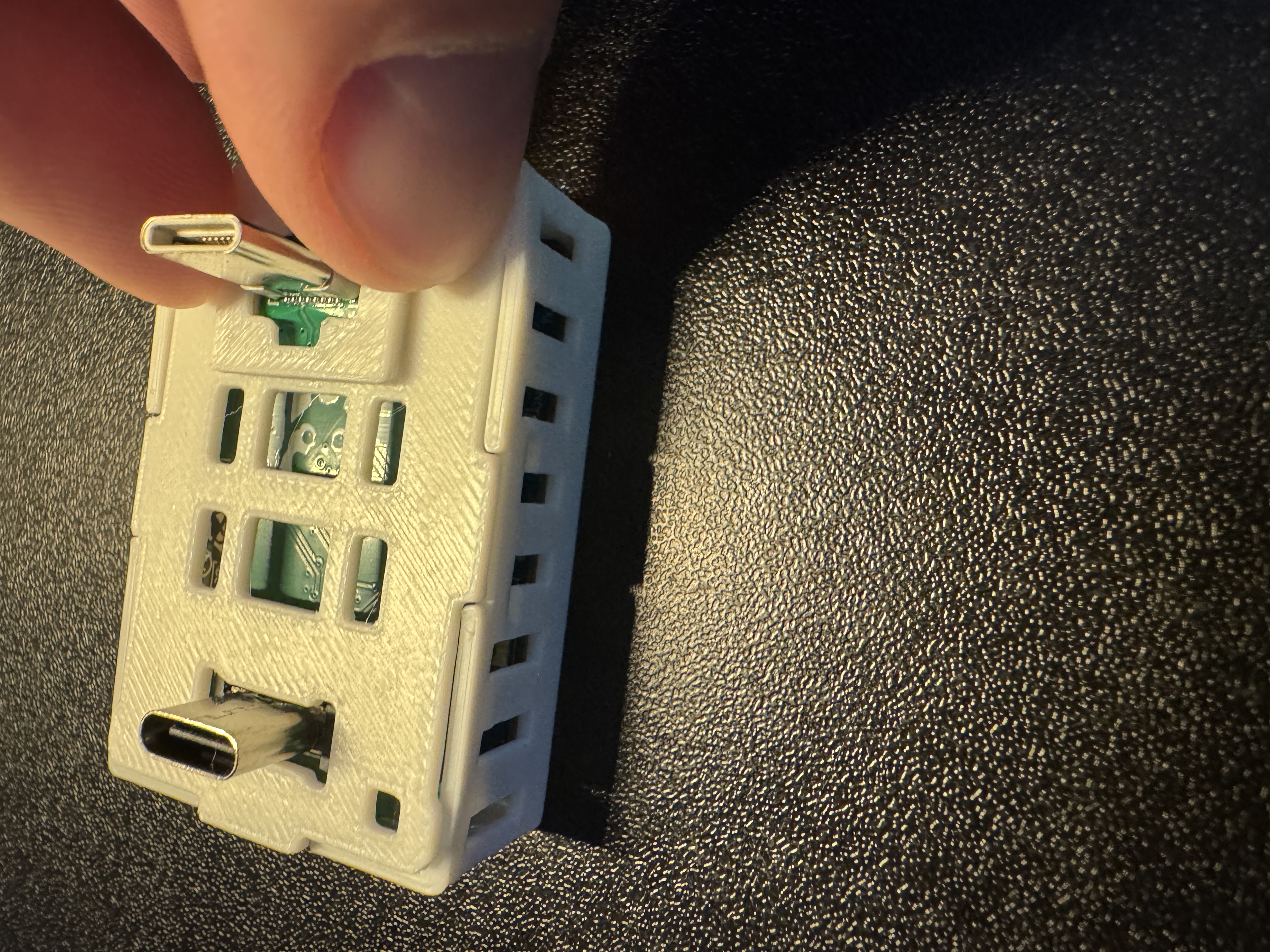

Fingers pushing the new backplate onto the MTR-1 around the Male USB-C addon

6. The case should sit flush and you're now ready to plug into a USB-C Outlet!

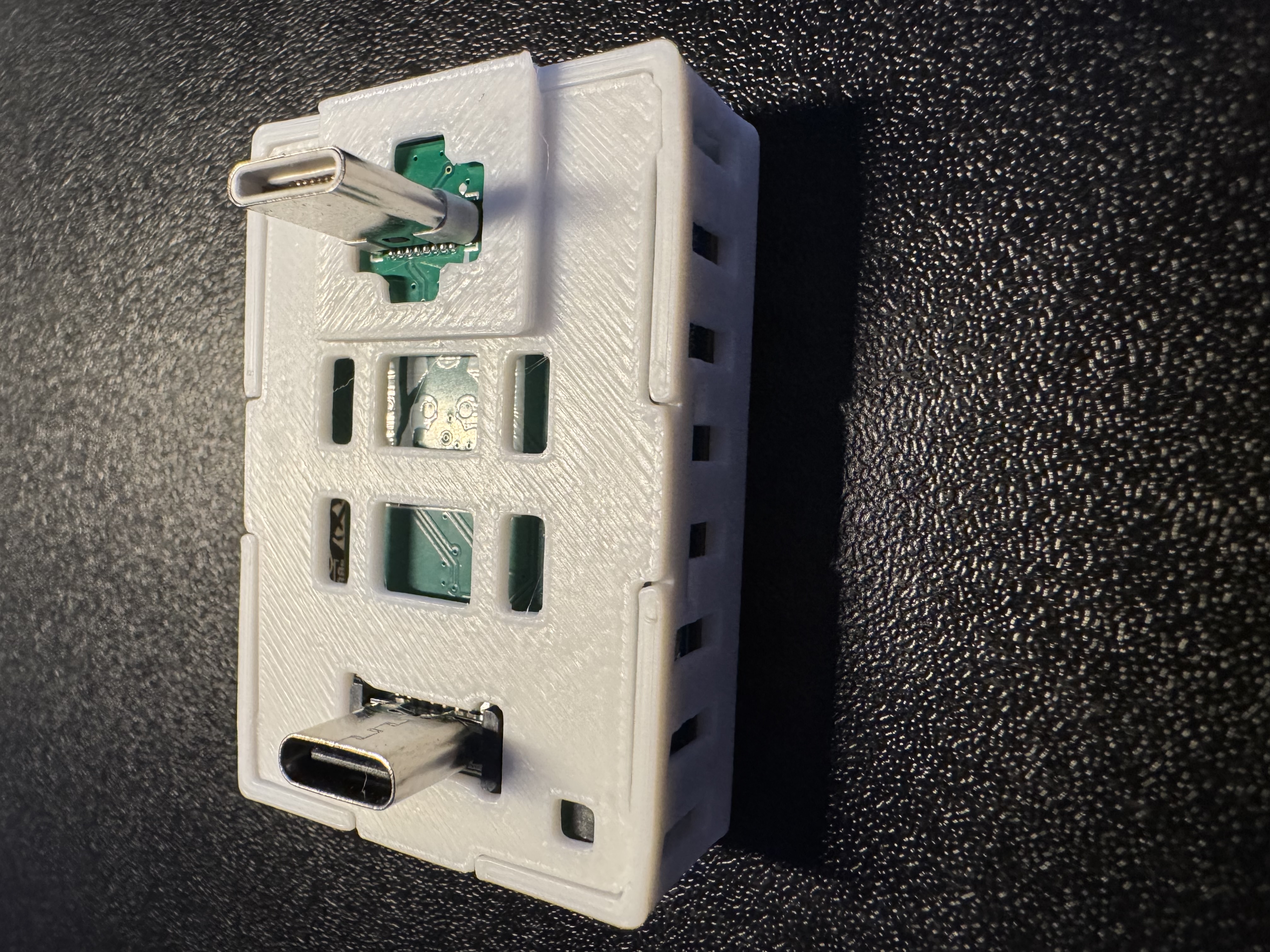

Assembled MTR-1 with the new backplate sitting flush around the rear male USB-C plug
