Adding the Temperature and Humidity Module

The temperature and humidity module is your starter kit's first environmental sensor, reading the air around it on whatever interval you choose. By the end of this tutorial you'll have an AHT20F wired to your ESP32-C6, surfaced as two sensors in your YAML, and updating live in the web server.

Before you start

Work through the two prerequisites first:

  • Start Here to snap the temperature and humidity module off the panel.
  • First Steps to install ESPHome Device Builder and create your starter kit device.

Prerequisite

The Web Server is used to broadcast a local website using your device. This allows you to navigate to the IP address of your device or hostname such as esphome-starter-kit.local to easily control your new device!

  1. In the ESPHome Device Builder, navigate to the Core configuration section.
  2. Click Add component.
  3. Scroll to Web Server and click Add.
  4. Click Add once more to confirm.
  5. Toggle Show advanced settings.
  6. Scroll down to Version and select 3 from the dropdown.

Attach Temp and Humidity module

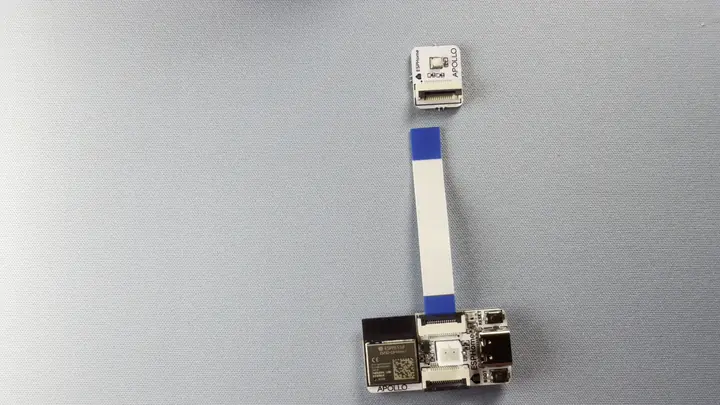

Connect the Temperature and Humidity module to the ESP32-C6 using one of the FPC ribbon cables that came with the kit. Either FPC connector on the C6 works, top or bottom.

1. Unplug the USB-C cable from the ESP32-C6 so the board is powered off.

2. Flip up the latch on the FPC connector then gently slide the ribbon cable in to the connector. Gently press the latch down to lock it in place.

3. Slide the ribbon cable into the temperature and humidity module with the blue side facing upwards then press the latch down to lock it in place.

4. Plug the C6 back into your computer.

Handle the FPC connectors gently

The latches are small and the ribbon cable is fragile. Lift the latch with a fingernail, slide the cable in, and press the latch down. Never pull on the cable itself.

Add to ESPHome Device Builder

ESPHome Device Builder ships an Add Component flow that knows the pin layout for every Apollo Starter Kit module. Use it instead of writing the I2C bus and sensor block by hand, and you'll get the right pins, address, and variant on the first try.

  1. Open your starter kit device in Device Builder and click Edit.
  2. In the ESPHome Device Builder, navigate to the Components section.

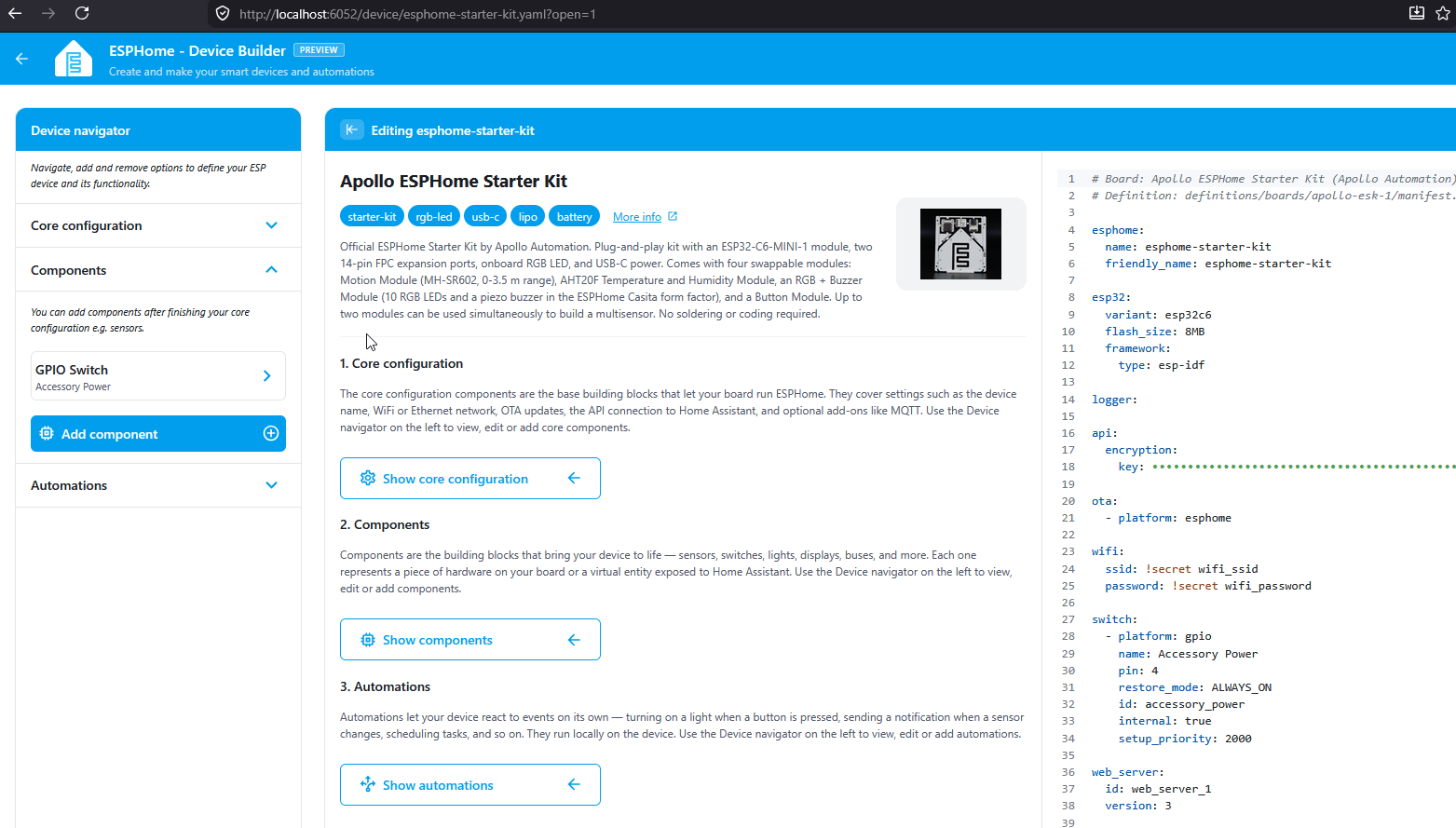

  3. Click Add Component in the editor toolbar.
  4. Search for Temperature and Humidity and select the Apollo Starter Kit temperature and humidity component.
  5. Click Add. Device Builder inserts I2C bus into your YAML.
  6. Search for Temperature and Humidity and select the Apollo Starter Kit temperature and humidity component.
  7. Click Add. Device Builder inserts the AHT20F sensor block into your YAML.

What the temperature and humidity YAML does

The blocks Add Component drops into your config look like this:

i2c:
  sda: GPIO1
  scl: GPIO0
  scan: true

sensor:
  - platform: aht10
    variant: AHT20
    id: aht_20
    temperature:
      name: "Temperature"
      id: aht_temperature
    humidity:
      name: "Humidity"
      id: aht_humidity
    update_interval: 60s

Each option does something specific:

Option What it does
i2c.sda / i2c.scl The data and clock pins for the I2C bus the AHT20F speaks on. The starter kit wires them to GPIO1 and GPIO0.
i2c.scan: true Lists every I2C device the board finds at boot, useful for confirming the sensor is connected.
platform: aht10 The ESPHome platform that drives AHT10, AHT20, and AHT30 sensors.
variant: AHT20 Tells the platform which variant of the chip is connected.
id: aht_20 Internal handle you can reference from automations and lambdas elsewhere in the config.
temperature / humidity Two sub-sensors. Each has a name shown in Home Assistant and the web server, and an id you can reference from automations and lambdas.
update_interval: 60s How often the sensor reports. 60 seconds is a reasonable default. Lower it for more responsive readings, raise it to cut down on network traffic.

Install the firmware

Flash the device so the new web server and the temperature and humidity entities go live.

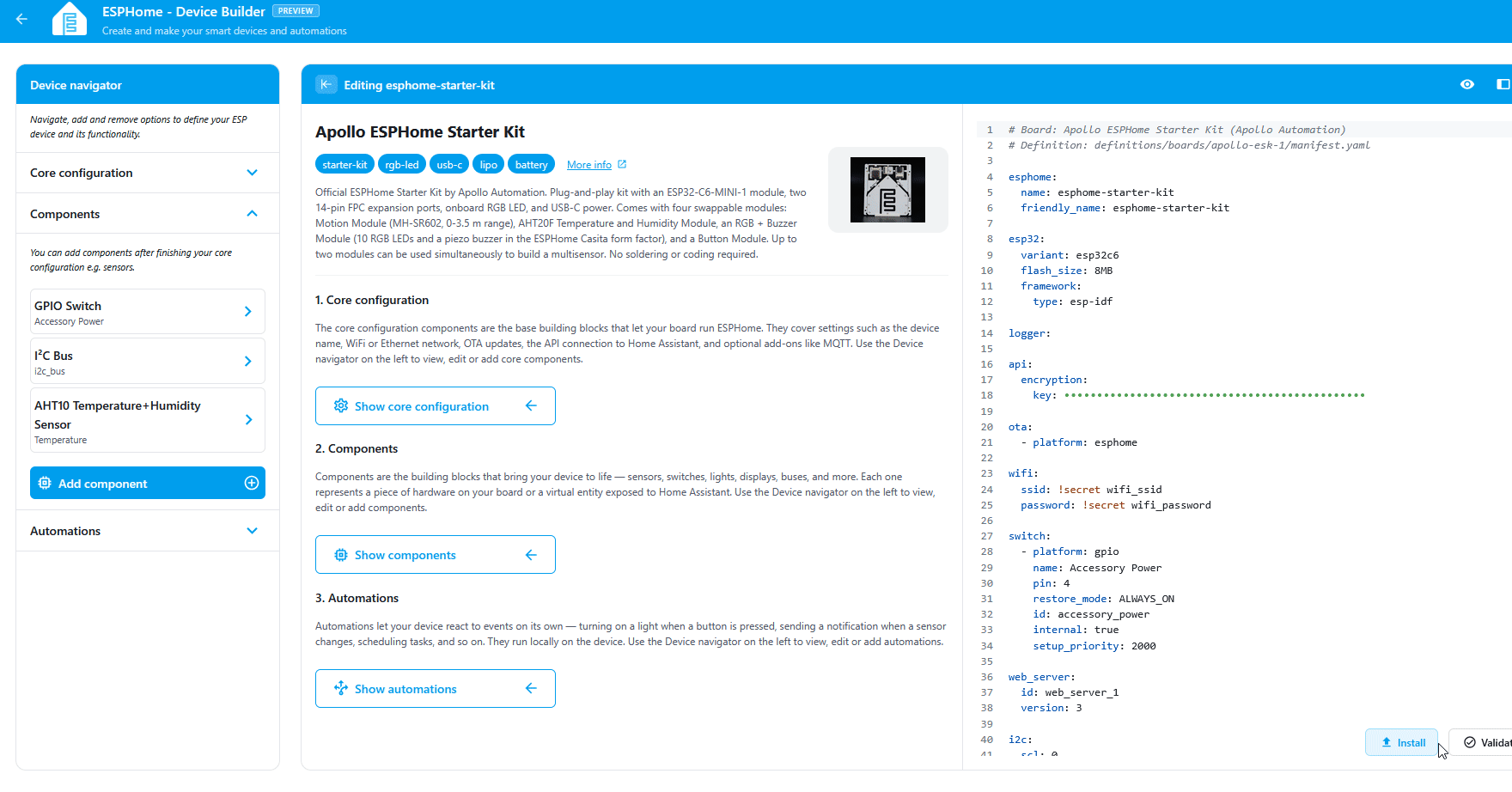

  1. Click Install on your device card in ESPHome Device Builder.
  2. Choose Plug into the computer running ESPHome Device Builder for the first flash, or On The Network if the device is already on your Wi-Fi.
  3. Wait for the compile and flash to finish. First builds can take a few minutes.
  4. The device reboots and reconnects to your Wi-Fi on its own.

Test the Temp and Humidity

With the device back online, the temperature and humidity entities are live on the web server. Open it in a browser on the same network and watch it react in real time.

  1. In a browser, open http://<your-device-name>.local/. If you used esphome-starter-kit as the device name in Getting Started, that's http://esphome-starter-kit.local/.
  2. Find the Temperature and Humidity entities in the sensor list.
  3. Watch the values update on the interval you set. Cup your hand over the sensor or breathe on it, the humidity reading will respond within a few cycles.

Web server page showing the Temperature and Humidity sensors with live readings.

Your Temperature and Humidity module is wired up

You now have a trustworthy temp and humidity sensor to place anywhere in your home!
