Teardown and reassembly of BTN-1

Disassembly

You'll remove the lid, lift out the green PCB, and disconnect the battery.

If you have a BTN-1 with a battery you should flip the power switch to off

The BTN-1 ships with a lithium ion battery, however, this means it needs a master shutoff switch, which is on the left side of your BTN-1

1. Flip the battery switch towards you to the off position. Users with no battery skip to step 2.

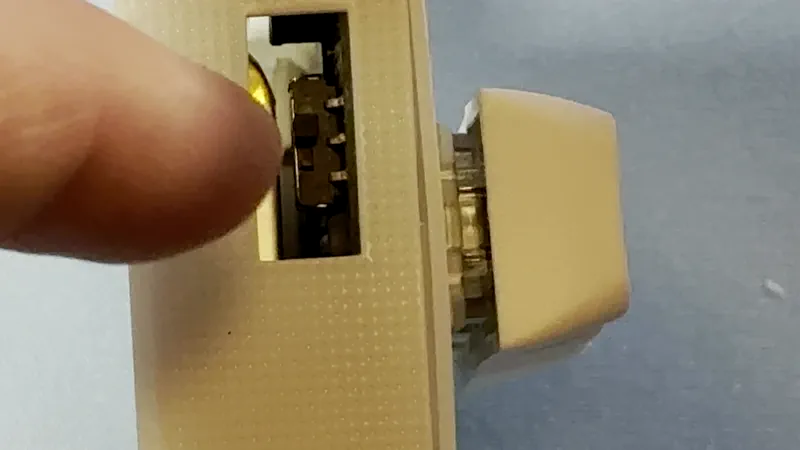

Sliding the BTN-1 battery power switch on the side of the case to the off position

2. With the BTN-1 USB-C port facing upwards, unplug the USB-C cable and remove the lid.

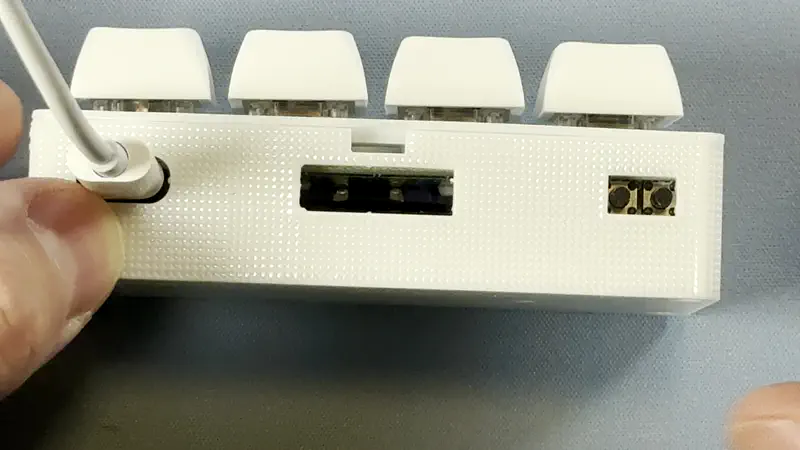

Unplugging the USB-C cable and prying the lid off the BTN-1 case with a pick

3. Gently lift the BTN-1 green PCB out of the device at an angle so the buttons clear the case easier.

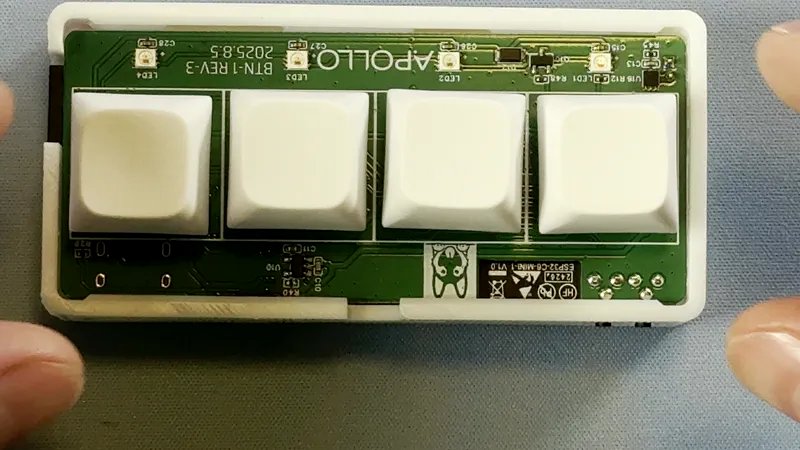

Lifting the BTN-1 circuit board out of the case at an angle, exposing the battery

4. Remove the 2-pin JST connector and remove the battery.

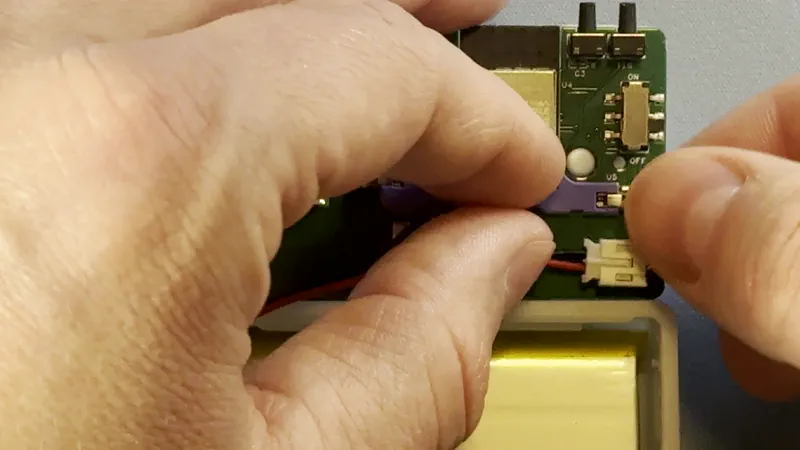

Unplugging the 2-pin JST battery connector from the BTN-1 circuit board

Reassembly

To put everything back together, you'll reconnect the battery, seat the PCB, and snap the lid back on.

1. Re-attach the 2-pin JST connector and place the battery writing side down with the wires on the left side of the case.

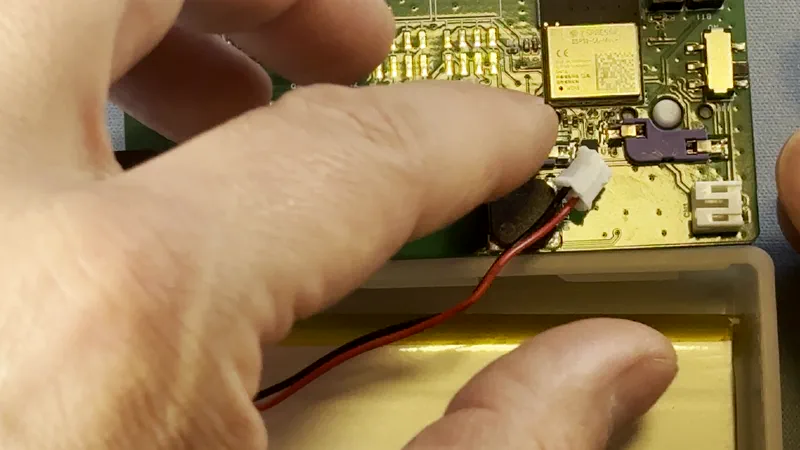

Plugging the 2-pin JST battery connector back into the BTN-1 circuit board

2. Gently place the BTN-1 green PCB back in the case at an angle so the buttons will slide into cutout in the case.

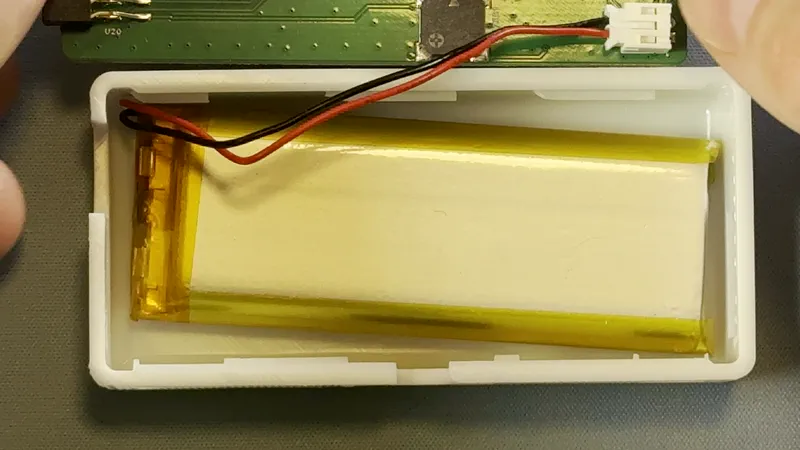

Lowering the BTN-1 circuit board back into the case at an angle over the battery

3. Line up the lid of the case with the holes for the rgb leds then gently press down to snap it into place.

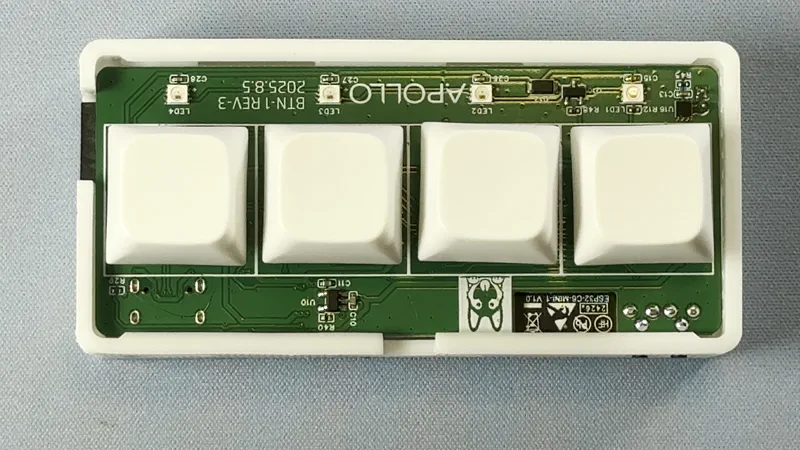

Pressing the BTN-1 lid down over the keycaps until it snaps into place

4. Flip the power switch back on.

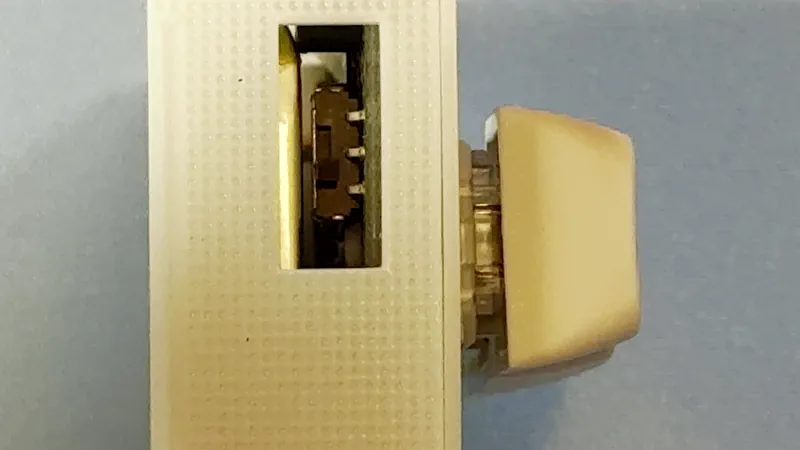

Sliding the BTN-1 power switch on the side of the case to the on position
