How to Insert the Battery

16340 AKA RC-CR123A and charger required!

The TEMP-1B is a very neat sensor but it does NOT include a battery nor a charging circuit. You will have to buy your own rechargeable RC-CR123A aka 16340 battery and also a separate 16340 charger such as a Nitecore 2 or 4bay model.

1. Gently pry open the case lid as shown in the image below.

Flat tool prying the lid off the TEMP-1B case at the side slit

TEMP-1B case with the lid removed, showing the circuit board inside

2. Once the lid is removed either lift the PCB out or gently dump the pcb out by turning it upside down.

Fingers lifting the TEMP-1B circuit board out of the case

TEMP-1B case lifted off the board, exposing the empty battery holder underneath

3. Align the battery as shown in the image below.

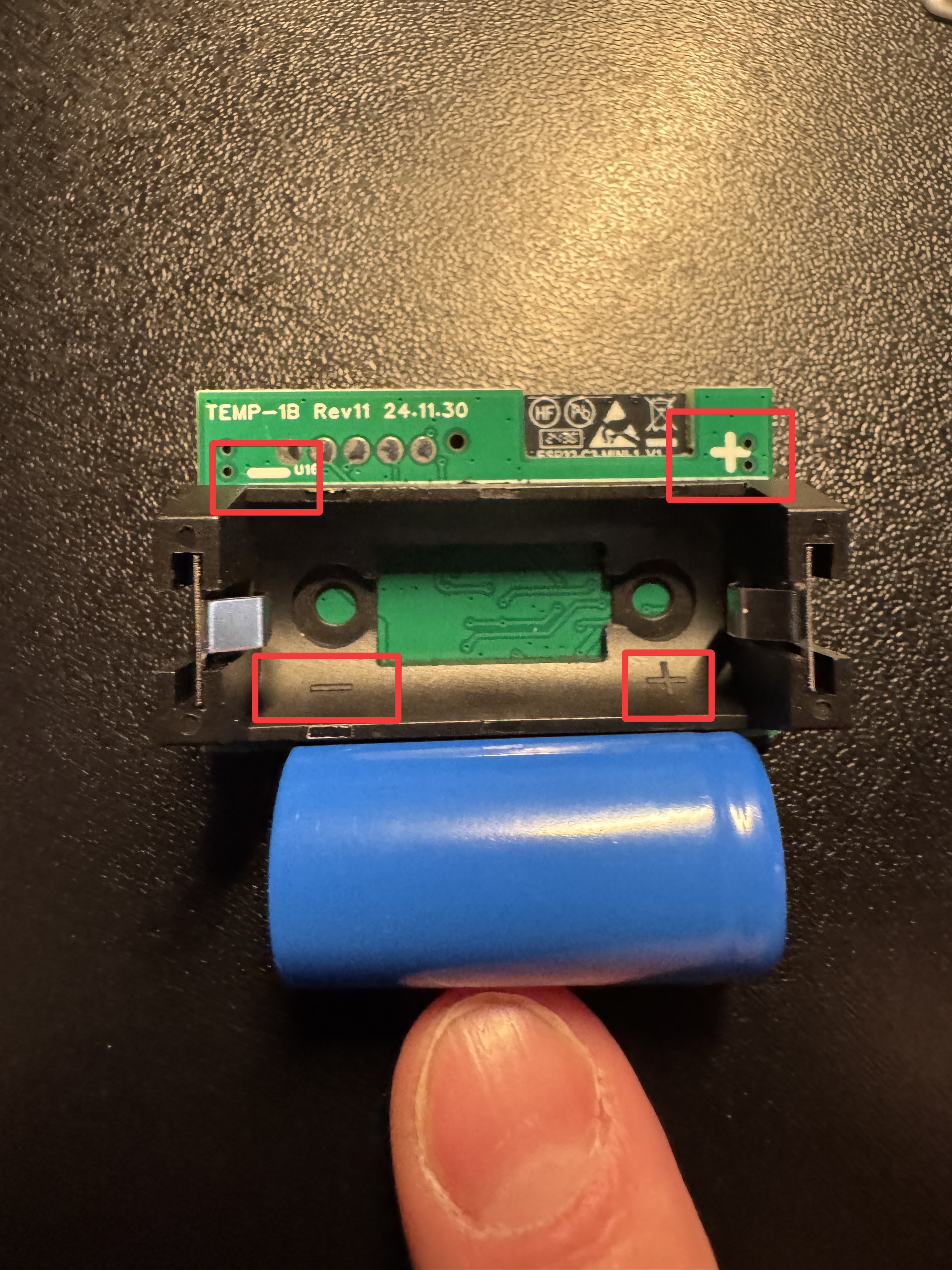

Battery held next to the empty TEMP-1B battery holder with the minus and plus markings highlighted

4. Insert the battery with the positive terminal facing the + sign.

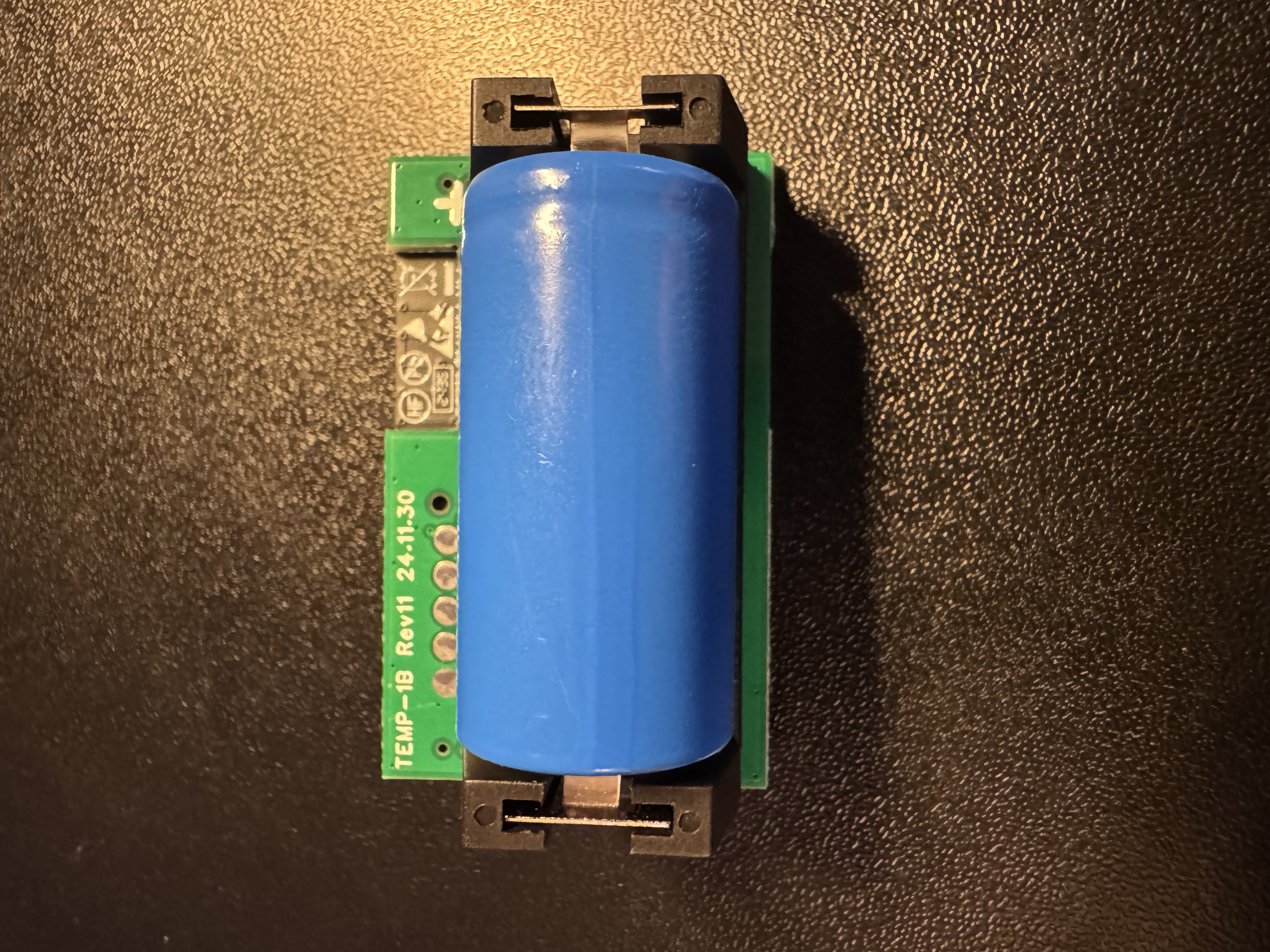

Battery seated in the TEMP-1B battery holder on the back of the board

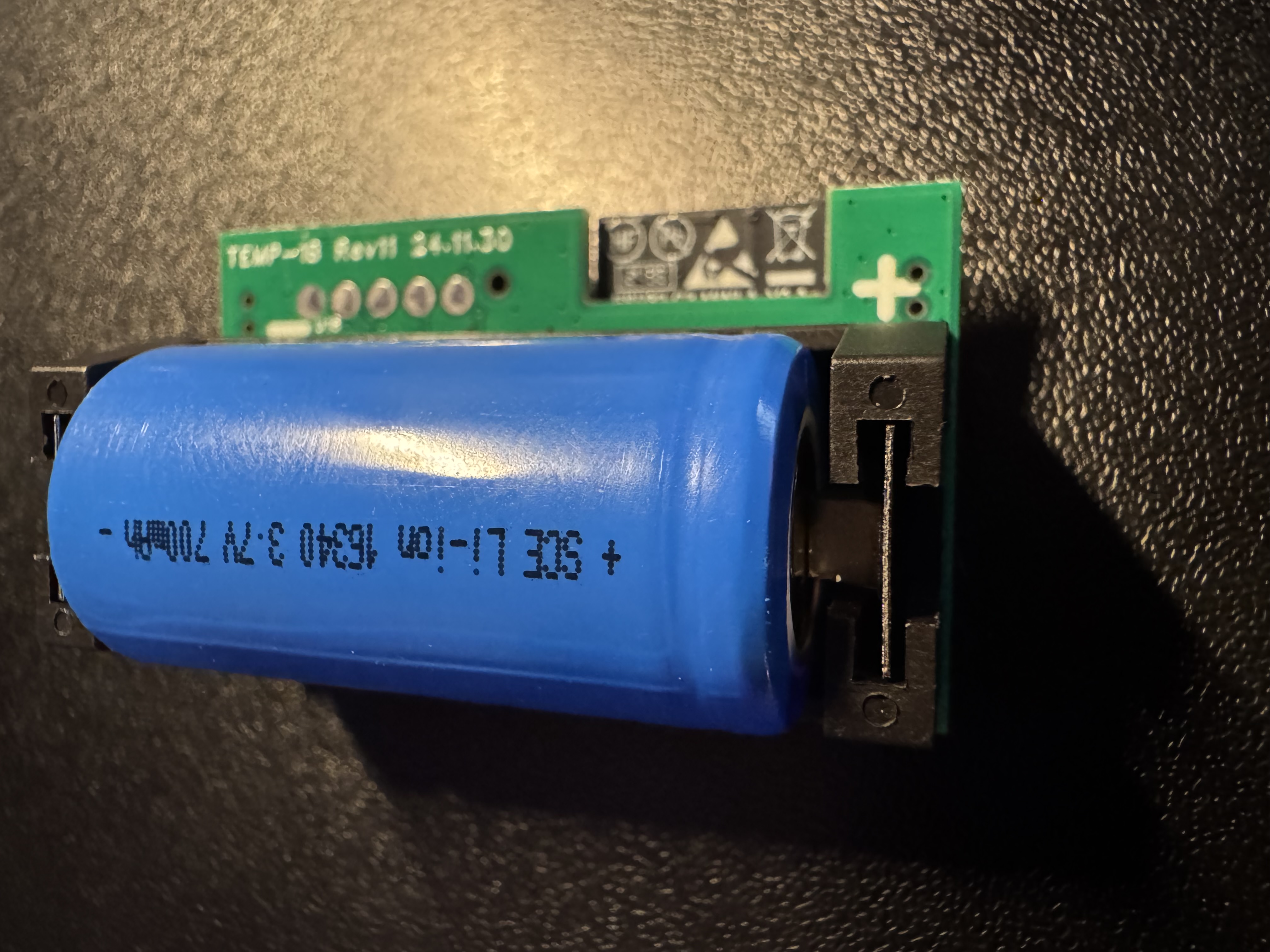

16340 battery installed in the TEMP-1B holder with its positive end at the + mark on the board

5. Begin reassembly by placing the battery side down with the RGB led in the top right corner.

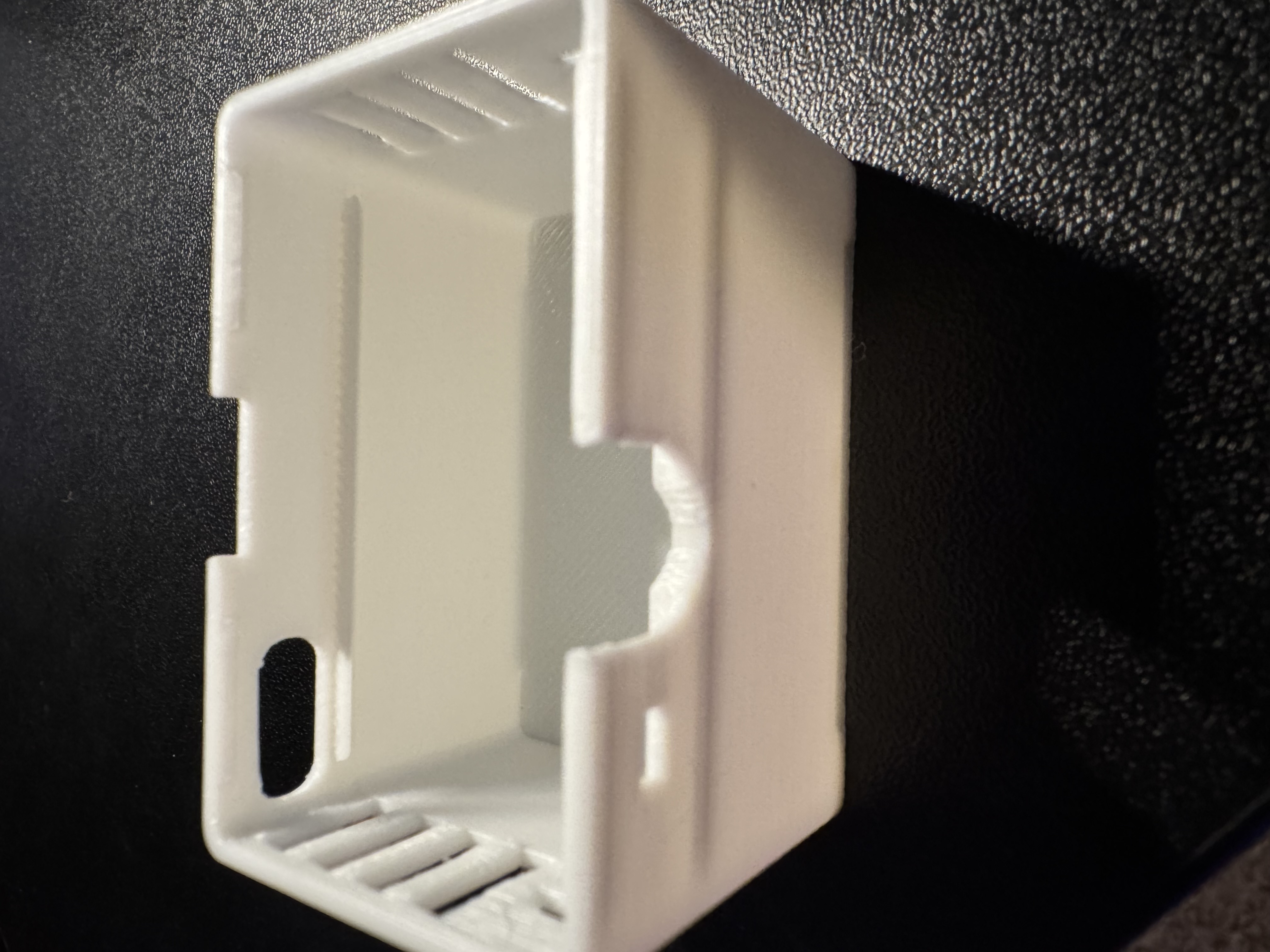

Empty TEMP-1B case ready for the board to go back in

Thumb setting the TEMP-1B board into the case battery side down, with the RGB LED in the top right corner

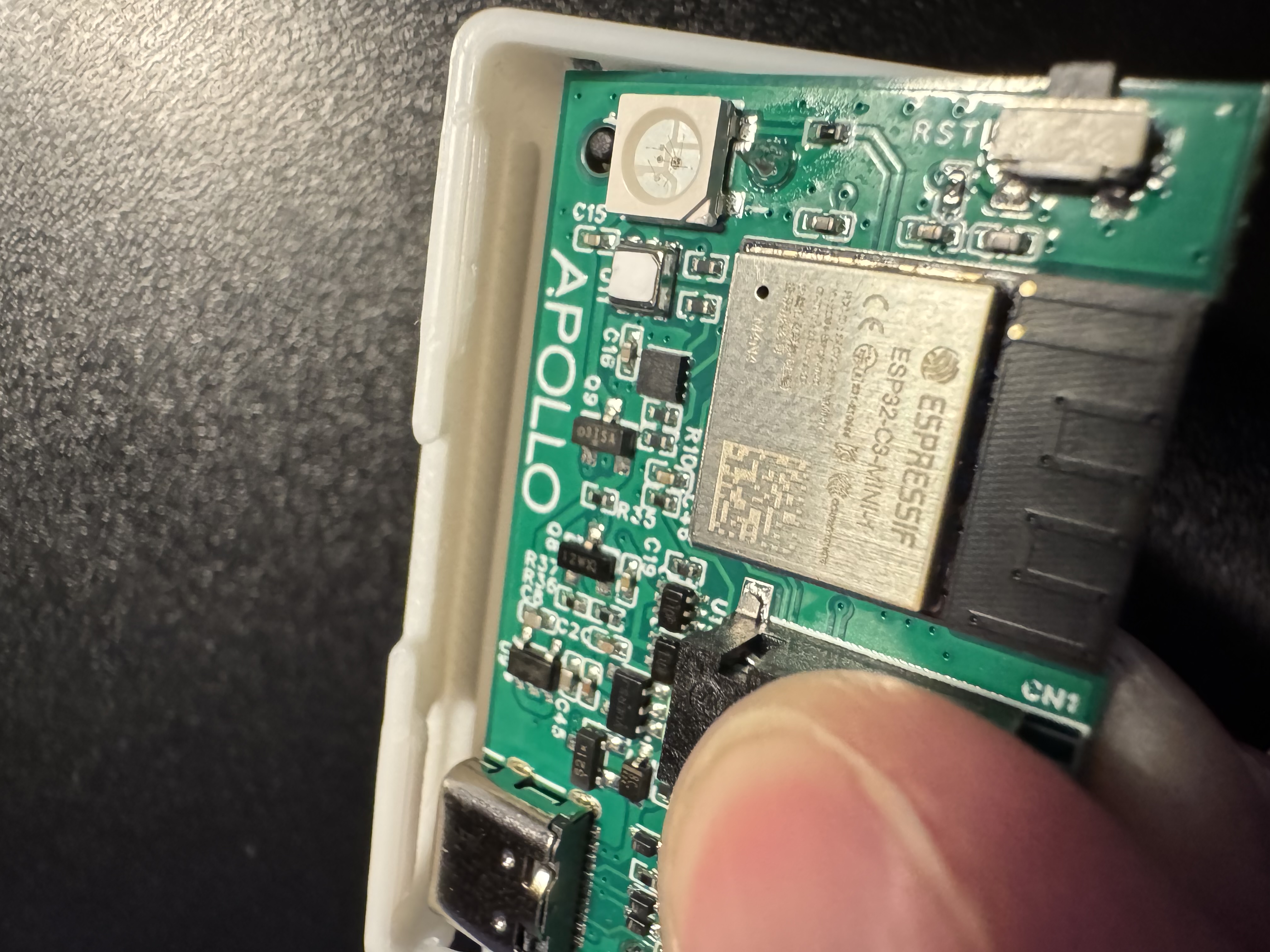

6. You will use the "ledge" of the case to set the PCB down and then it will lay down and rest on the ledge of the other side as well.

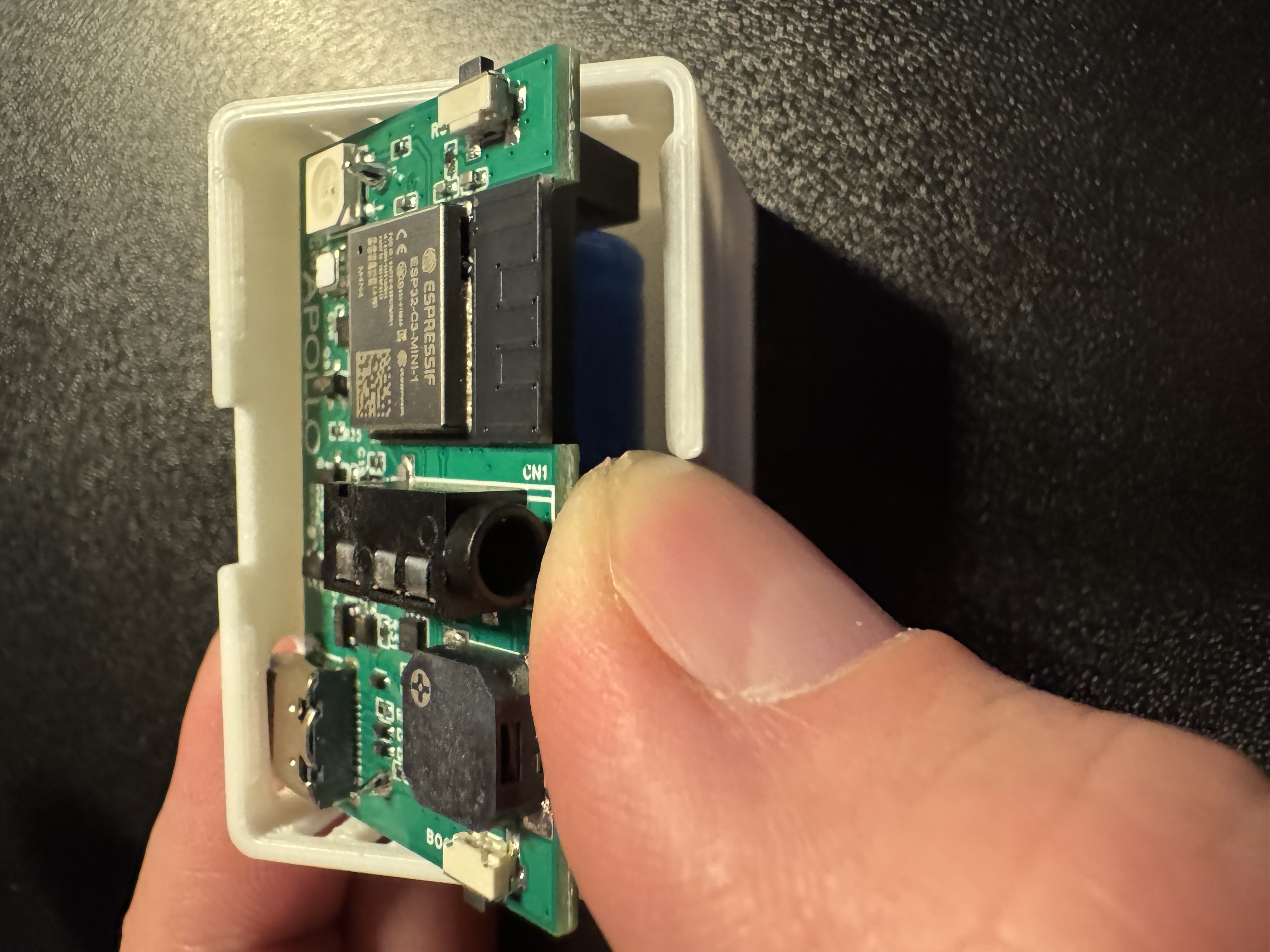

TEMP-1B board tilted into the case, resting on the ledge with the battery underneath

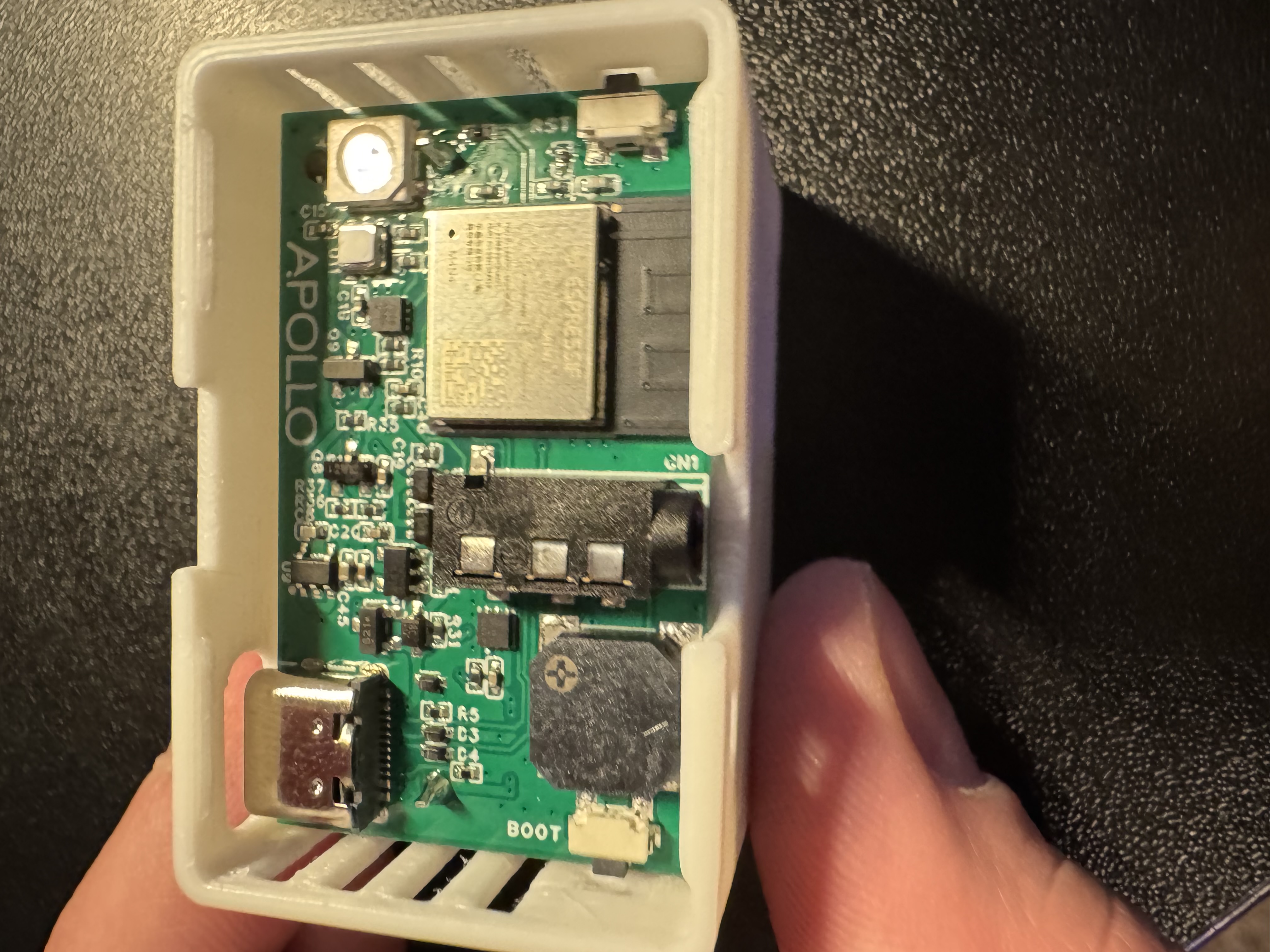

TEMP-1B board lying flat in the case with the RGB LED in the top right corner

7. Align the RGB led in the top right with the small hole in the lid.

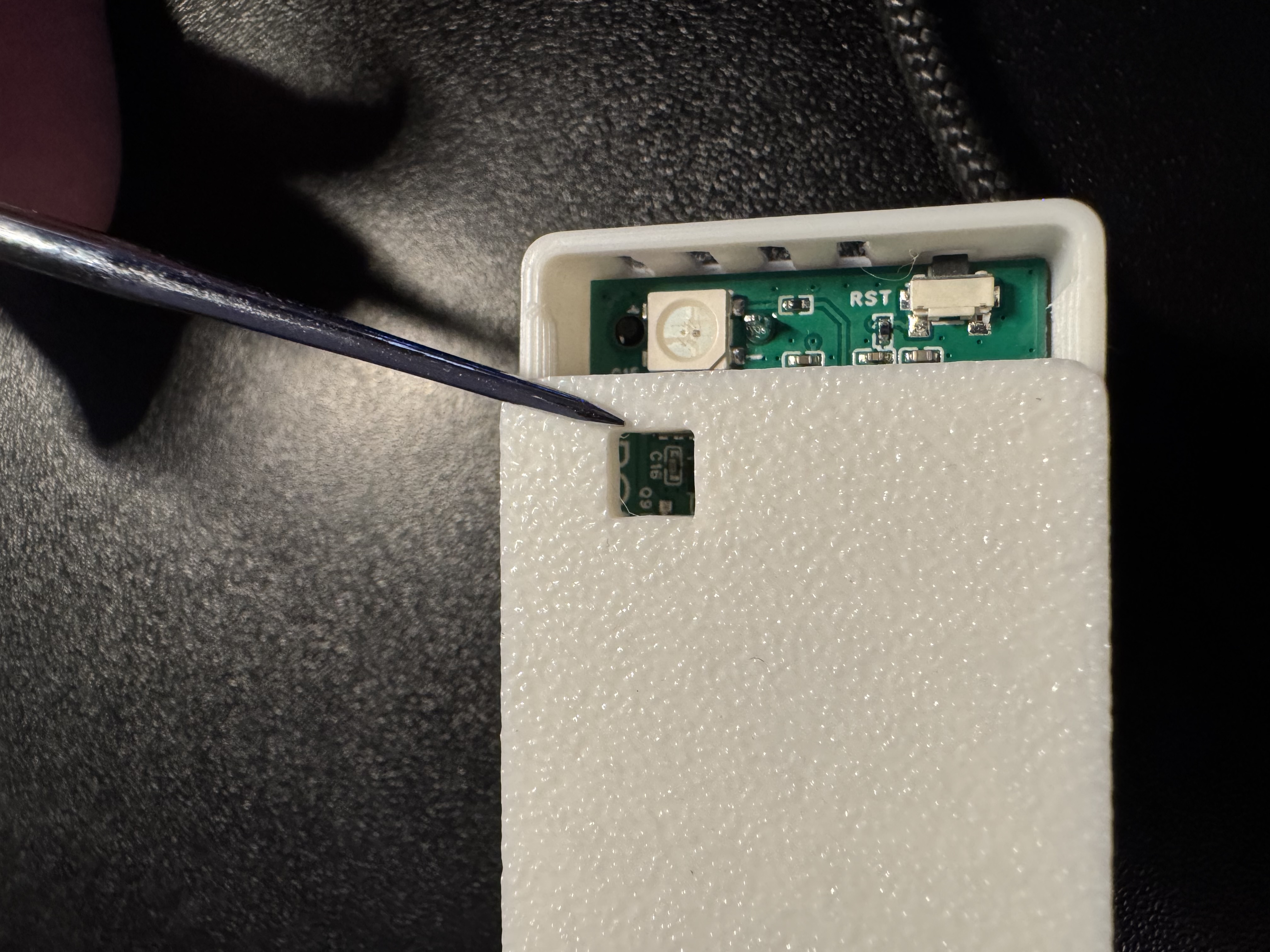

TEMP-1B lid sliding into place, with a tool pointing at the lid hole that lines up with the RGB LED

8. Gently press down until the lid seats.

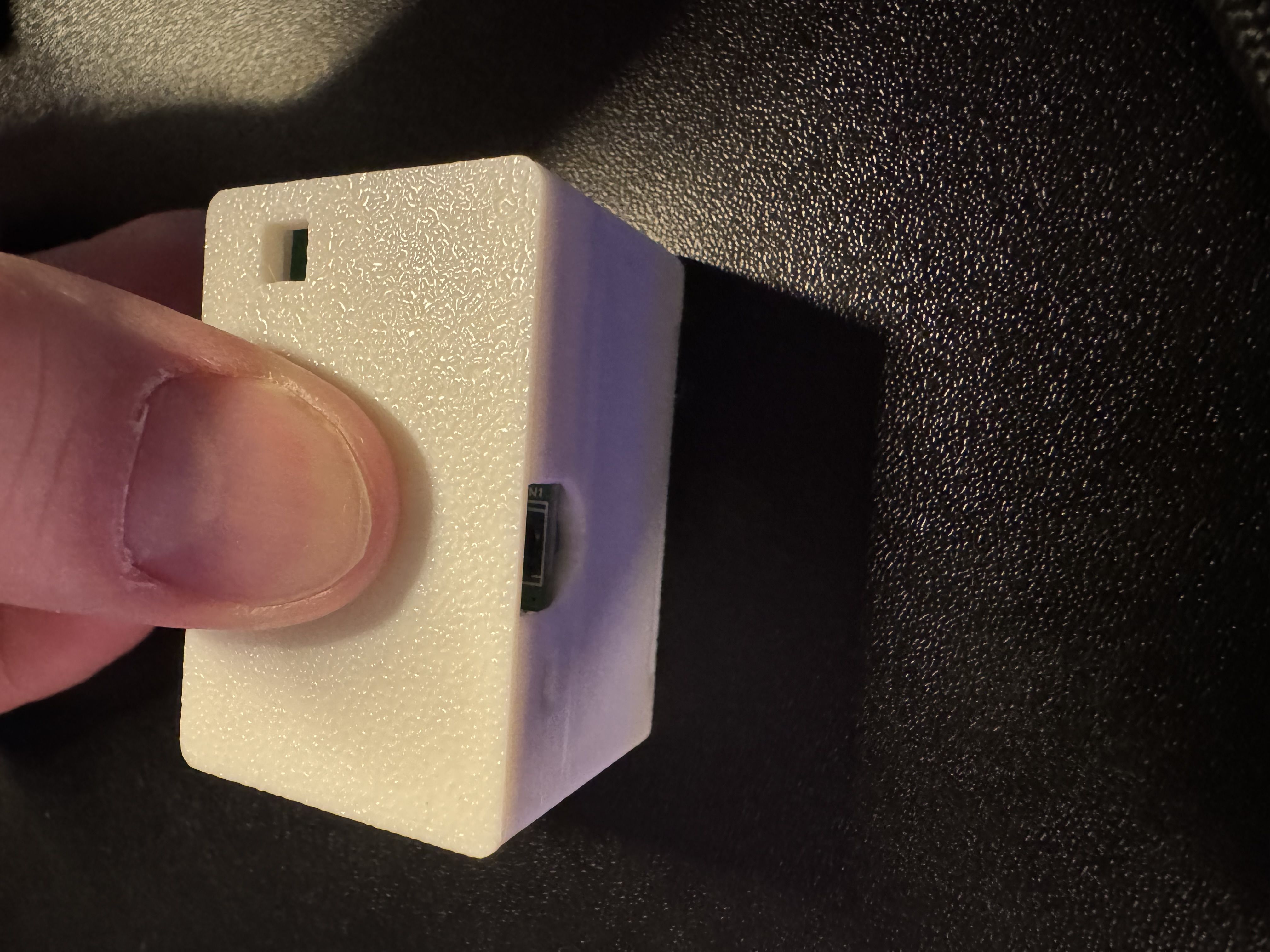

Thumb pressing the lid down onto the TEMP-1B case until it seats

9 You have now installed or reinstalled the battery!
