Introduction

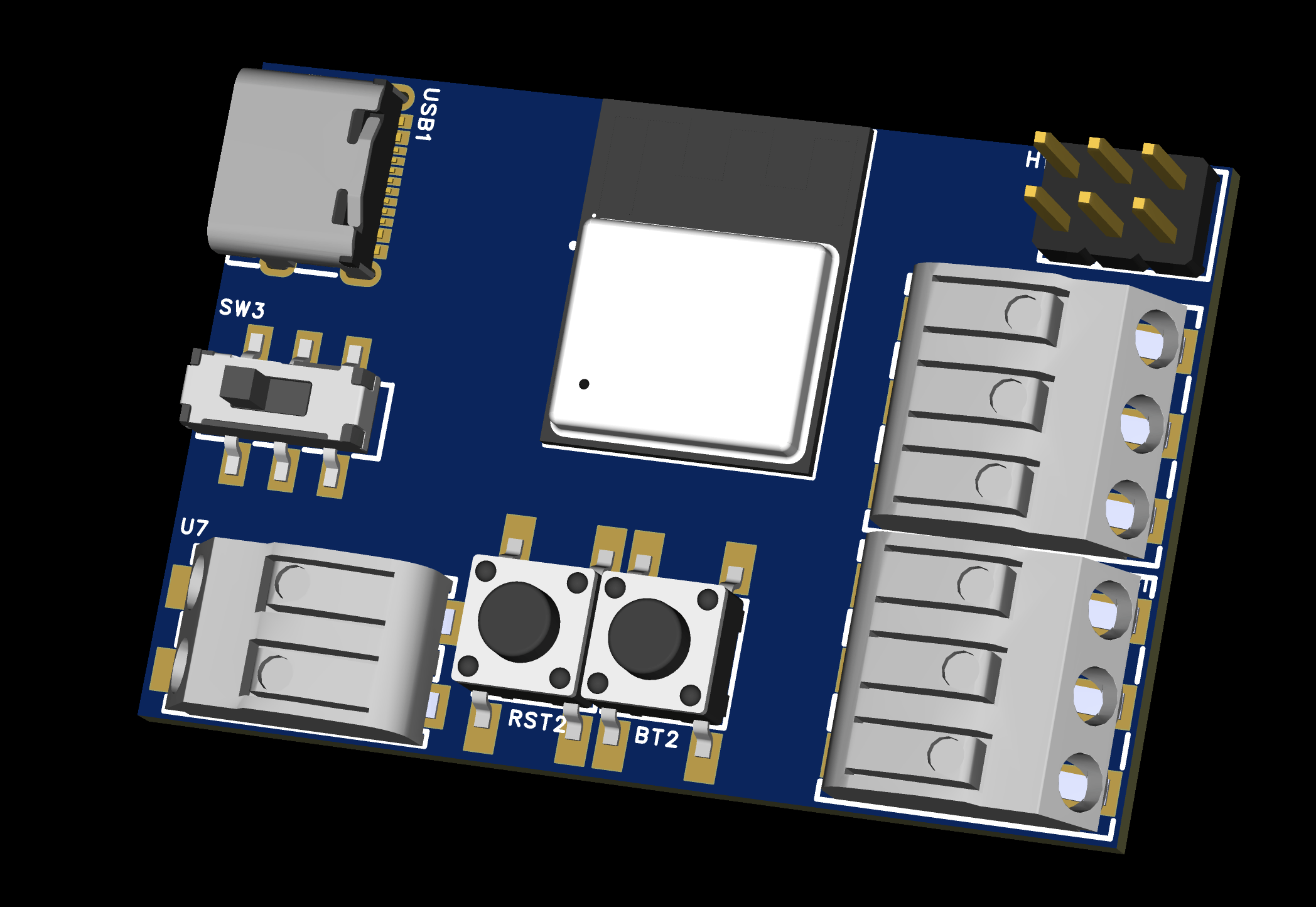

3D render of the LED-1 board with USB-C port, switch, reset and boot buttons, and Wago connectors

The Apollo LED-1 is a compact, versatile LED Controller for Home Assistant. Fully open-source and expandable, the LED-1 integrates with Home Assistant using the WLED Integration, making it ideal for automating lighting. Access to support and customization resources is available via our Discord and GitHub.

Key Features:

  • Powered via either USB-C (5 V only), USB-C PD (5 V or 12 V) or external power supply (5 V, 12 V, or 24 V).
  • Two fused outputs able to handle 10 Amps total, either from one output or both but max of 10 Amps.
  • Built in MEMS digital microphone for WLED Audio Reactive functionality.
  • Built in relay to kill power to LEDs for less power usage (great for battery projects).
