Factory Re-Flash LED-1

1. Plug in a USB cable that supports power and data into your computer.

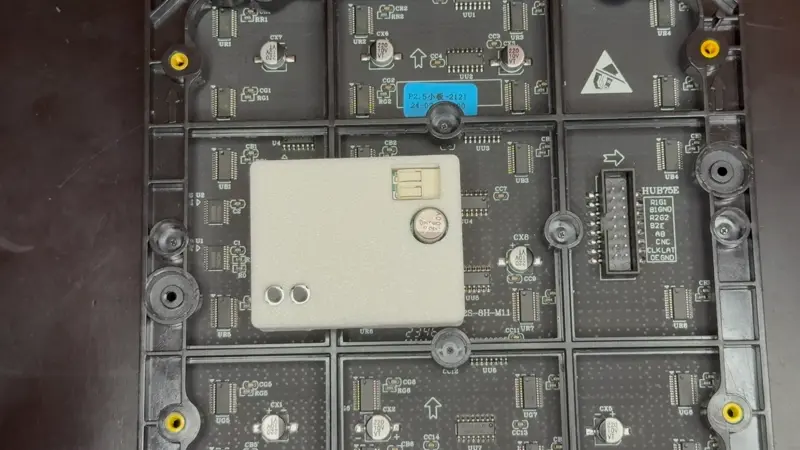

2. Push and hold the boot button (the right button). While still holding the button down, plug in a USB-C cable into the USB-C port of your M-1 LED Matrix then let go of the button.

3. Download the firmware .bin file from here.

4. Download ESP Flasher (Windows EXE) and open it.

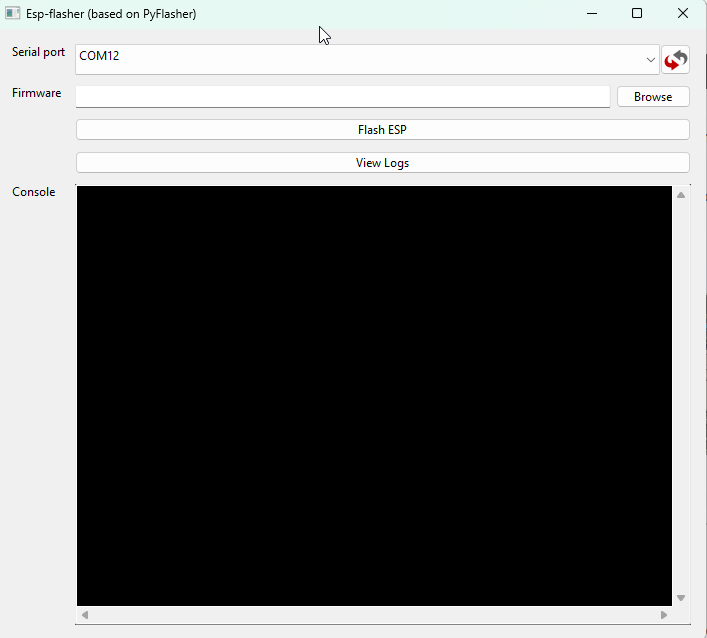

5. Click the Serial Port dropdown and choose the available COM port..

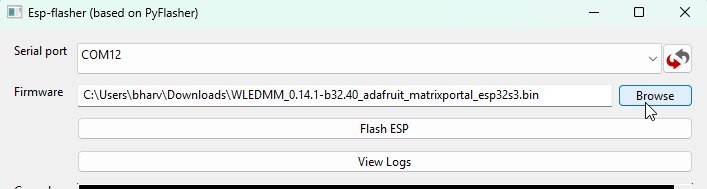

6. Browse to the firmware file from Step 3 and select it.

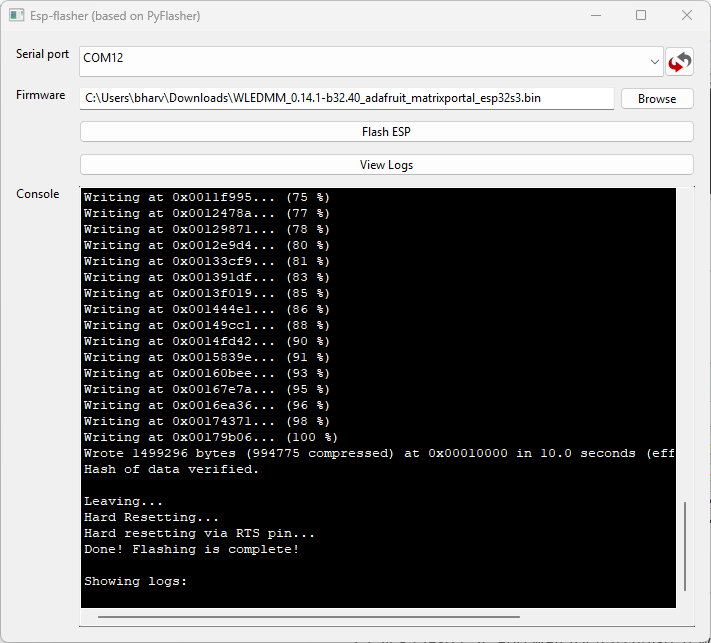

7. Click Flash ESP and wait for the process to complete. Once it's done, it will appear as shown in the image below.

8. The device is still in boot mode and needs to be power cycled. To reboot it, either unplug the power cable or press the reset button on the back of the device (the button on the right).

Head to the Getting Started article to setup your M-1 as a new device!
