How To Tune mmWave Using HLKRadarTool¶

LD2450 Configuration¶

Ensure that the LD2450 firmware version is V2.02.23090617 or later for proper integration functionality.

The newer version of the firmware includes an "auto calibrate" function so you might want to test it out!

The HLK-LD2450 mmWave sensor is used in the MTR-1. Click Here for the datasheet.

iPhoneAndroid

Click here to download

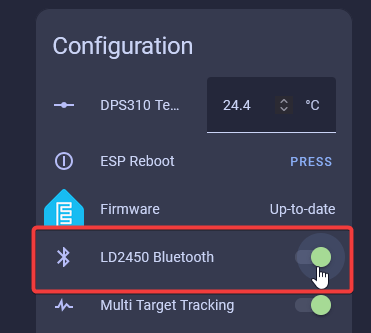

1. Head to the ESPHome Integrations page then select your MTR-1 and scroll down until you see LD2450 Bluetooth.

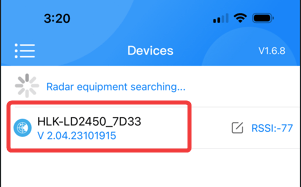

2. Open the HLKRadarTool App and select your device.

You need to be close to your device!

The LD2450 mmWave sensor is a very tiny sensor with no external antenna, which means it cannot connect to bluetooth devices unless they are very close. Sometimes this means you need to be within a few feet of the sensor to connect directly to it!

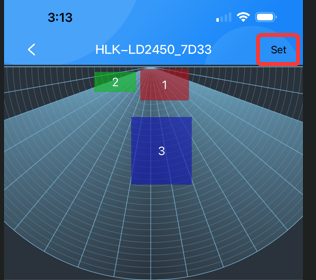

3. Select Set in the top right.

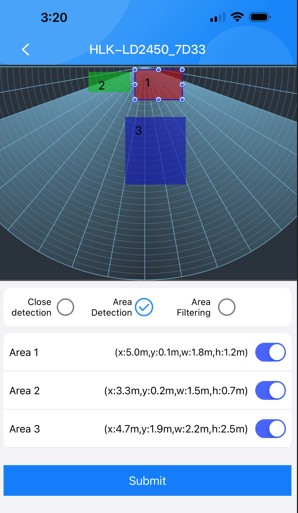

4. Select Detection then toggle Area 1, 2, or 3 and you will see a box with the corresponding number pop up. Then you can press and hold the box to move it and resize it. When your zones are set then select Submit and you should see Setup successfully.

There are three ways to use your MTR-1!

You can use any of these three choices to control your MTR-1 differently. The most common option is "Detection" which lets you setup three areas and track three targets within them.
Disabled: Disable zone area detection
Detection: Only detects targets in the specified zone
Filter: Excludes a zone from detection

Disabled allows you to just use the sensor as a "basic" presence sensor and "Filter" lets you filter out an area and detect everything else, which is useful to avoid a fan!

5. If set up correctly the zones should be saved as different colors. You can double-check that the settings are saved by looking at your HA entities (picture below). You should be all set!

Helpful Hints to understand zones better!

X1 must always be less than X2, and Y1 must always be less than Y2.
The Y axis is easier since it's never negative.

The X axis is where you can get tripped up, especially when both values are negative: -3456 is less than -2345.
The Plotly chart will still render the rectangles even if the X1/X2 and Y1/Y2 values are reversed.
The zones cannot overlap.

Dashboard Card Setup¶

6. Copy the code below and add a Home Assistant card to visualize your zones. You will need to change all of the apollo_mtr_1 entity IDs to match your MTR-1 device. This can be done quickly by using a code editor or ChatGPT.

type: custom:plotly-graph
title: Target Positions
refresh_interval: 1
hours_to_show: current_day
layout:
  height: 230
  margin:
    l: 50
    r: 20
    t: 20
    b: 40
  showlegend: true
  xaxis:
    dtick: 1000
    gridcolor: RGBA(200,200,200,0.15)
    zerolinecolor: RGBA(200,200,200,0.15)
    type: number
    fixedrange: true
    range:
      - -4000
      - 4000
  yaxis:
    dtick: 1000
    gridcolor: RGBA(200,200,200,0.15)
    zerolinecolor: RGBA(200,200,200,0.15)
    scaleanchor: x
    scaleratio: 1
    fixedrange: true
    range:
      - 7500
      - 0
entities:
  - entity: ''
    name: Target1
    marker:
      size: 12
    line:
      shape: spline
      width: 5
    x:
      - $ex hass.states["sensor.apollo_mtr_1_982da4_target_1_x"].state
    'y':
      - $ex hass.states["sensor.apollo_mtr_1_982da4_target_1_y"].state
  - entity: ''
    name: Target2
    marker:
      size: 12
    line:
      shape: spline
      width: 5
    x:
      - $ex hass.states["sensor.apollo_mtr_1_982da4_target_2_x"].state
    'y':
      - $ex hass.states["sensor.apollo_mtr_1_982da4_target_2_y"].state
  - entity: ''
    name: Target3
    marker:
      size: 12
    line:
      shape: spline
      width: 5
    x:
      - $ex hass.states["sensor.apollo_mtr_1_982da4_target_3_x"].state
    'y':
      - $ex hass.states["sensor.apollo_mtr_1_982da4_target_3_y"].state
  - entity: ''
    name: Zone1
    mode: lines
    fill: toself
    fillcolor: RGBA(20,200,0,0.06)
    line:
      color: RGBA(20,200,0,0.2)
      shape: line
      width: 2
    x:
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_1_x1"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_1_x1"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_1_x2"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_1_x2"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_1_x1"].state
    'y':
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_1_y1"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_1_y2"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_1_y2"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_1_y1"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_1_y1"].state
  - entity: ''
    name: Zone2
    mode: lines
    fill: toself
    fillcolor: RGBA(200,0,255,0.06)
    line:
      color: RGBA(200,0,255,0.2)
      shape: line
      width: 2
    x:
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_2_x1"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_2_x1"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_2_x2"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_2_x2"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_2_x1"].state
    'y':
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_2_y1"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_2_y2"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_2_y2"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_2_y1"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_2_y1"].state
  - entity: ''
    name: Zone3
    mode: lines
    fill: toself
    fillcolor: RGBA(200,120,55,0.06)
    line:
      color: RGBA(200,120,55,0.2)
      shape: line
      width: 2
    x:
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_3_x1"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_3_x1"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_3_x2"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_3_x2"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_3_x1"].state
    'y':
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_3_y1"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_3_y2"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_3_y2"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_3_y1"].state
      - $ex hass.states["number.apollo_mtr_1_982da4_zone_3_y1"].state
  - entity: ''
    name: Coverage
    mode: lines
    fill: tonexty
    fillcolor: rgba(168, 216, 234, 0.15)
    line:
      shape: line
      width: 1
      dash: dot
    x:
      - 0
      - $ex 7500 * Math.sin((2 * Math.PI)/360 * 60)
      - 4500
      - 4000
      - 3000
      - 2000
      - 1000
      - 0
      - -1000
      - -2000
      - -3000
      - -4000
      - -4500
      - $ex -7500 * Math.sin((2 * Math.PI)/360 * 60)
      - 0
    'y':
      - 0
      - $ex 7500 * Math.cos((2 * Math.PI)/360 * 60)
      - $ex Math.sqrt( 7500**2 - 4500**2 )
      - $ex Math.sqrt( 7500**2 - 4000**2 )
      - $ex Math.sqrt( 7500**2 - 3000**2 )
      - $ex Math.sqrt( 7500**2 - 2000**2 )
      - $ex Math.sqrt( 7500**2 - 1000**2 )
      - 7500
      - $ex Math.sqrt( 7500**2 - 1000**2 )
      - $ex Math.sqrt( 7500**2 - 2000**2 )
      - $ex Math.sqrt( 7500**2 - 3000**2 )
      - $ex Math.sqrt( 7500**2 - 4000**2 )
      - $ex Math.sqrt( 7500**2 - 4500**2 )
      - $ex 7500 * Math.cos((2 * Math.PI)/360 * 60)
      - 0
raw_plotly_config: true
